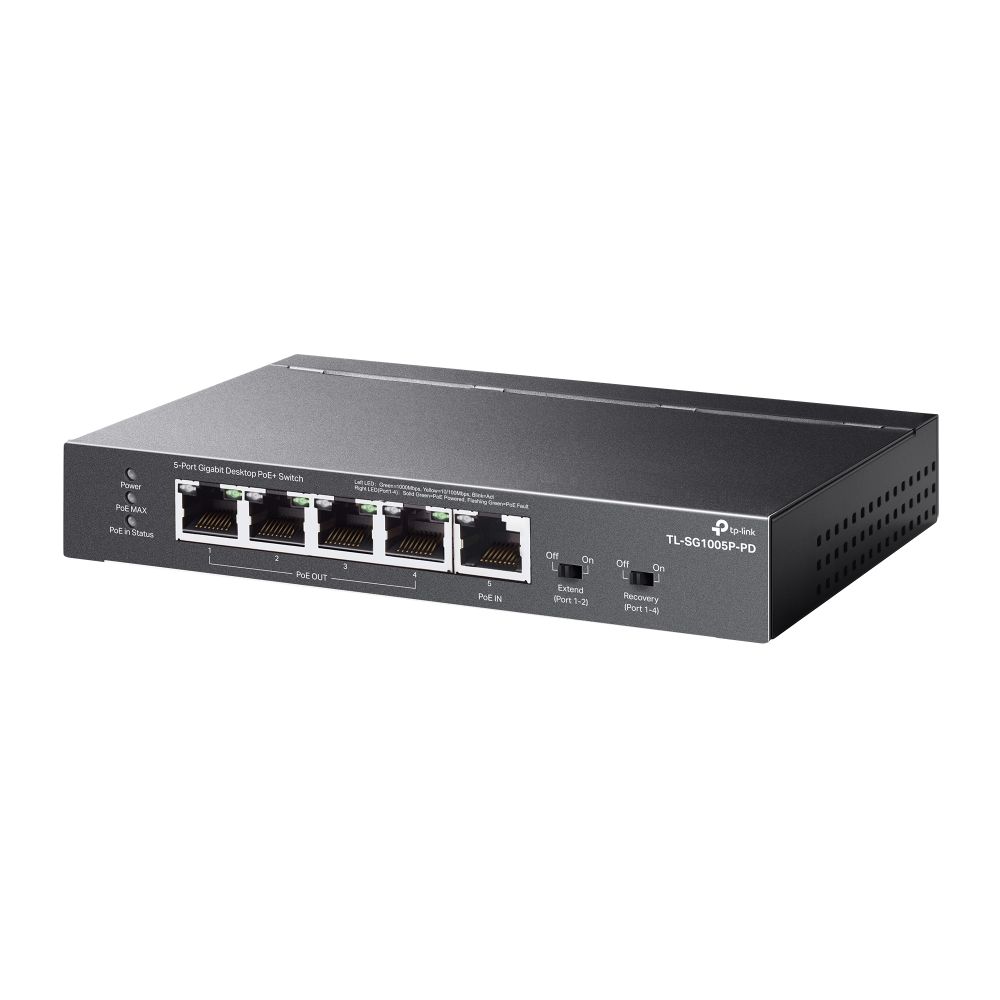

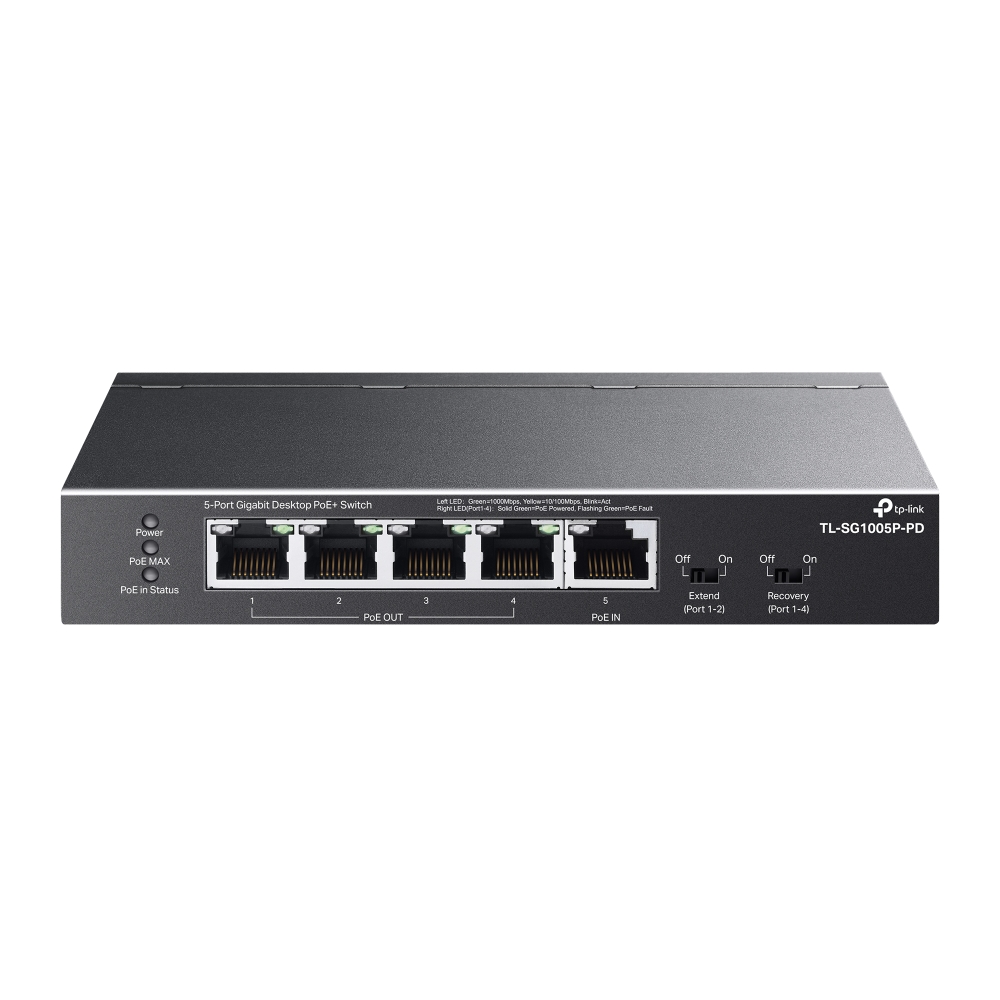

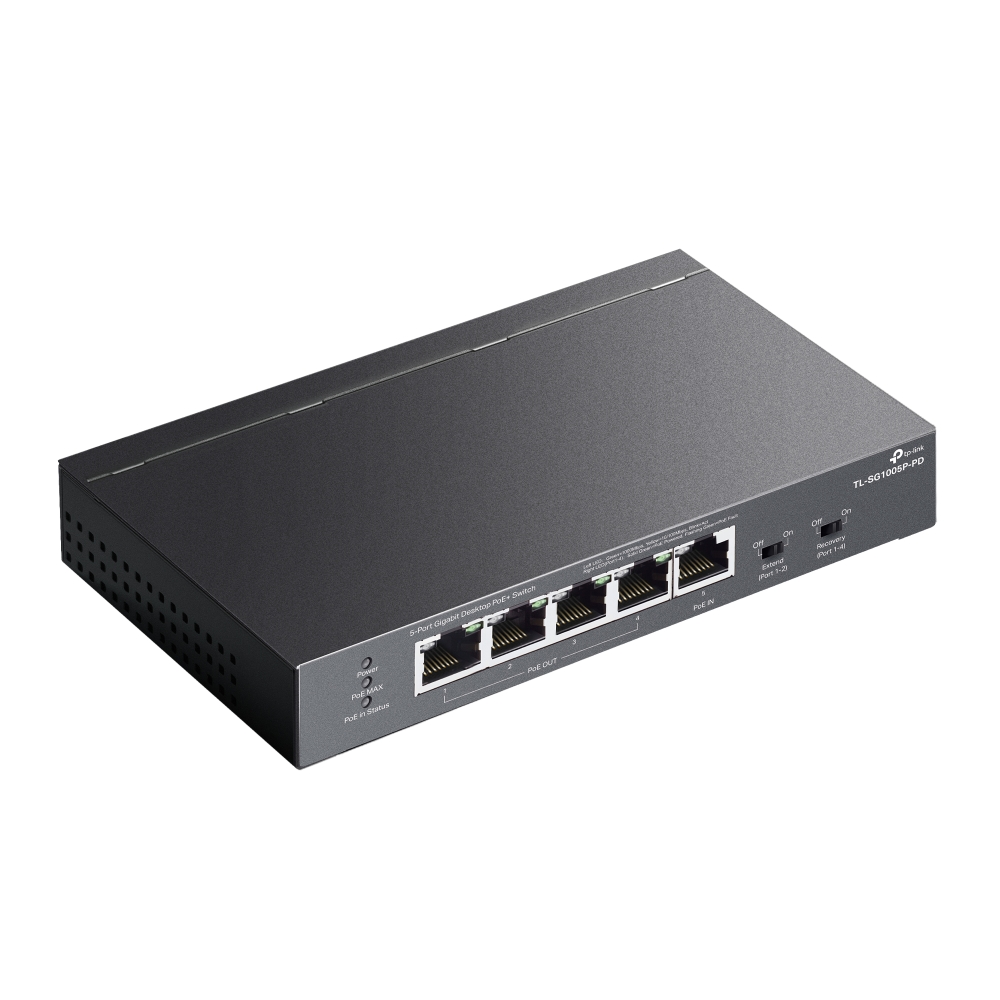

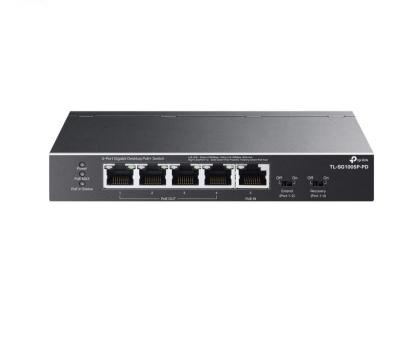

TP-Link 5-Port Gigabit Desktop Switch with 1-Port PoE++ In and 4-Port PoE+ Out

Specifications:

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p
Interface
• 5× 10/100/1000Mbps RJ45 Ports
• 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)
• 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply Only Powered by PoE Device
PoE Ports (RJ45)
• PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4
• PoE Out Ports: Ports 1-4, compliance with 802.3af/at
• PoE Power Budget:
-66 W when powered by 802.3bt Type 4 (90 W)
-47 W when powered by 802.3bt Type 3 (60 W)
-21 W when powered by 802.3at (30 W)
-9 W when powered by 802.3af (15.4 W)
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Max Power Consumption
• 2.68 W (90W PoE In, with no PD connected)
• 68.59 W (90W PoE In, with 66 W PD connected)
Max Heat Dissipation
• 9.112 BTU/h (90W PoE In, with no PD connected)
• 233.206 BTU/h (90W PoE In, with 66 W PD connected
Warranty 3Years
