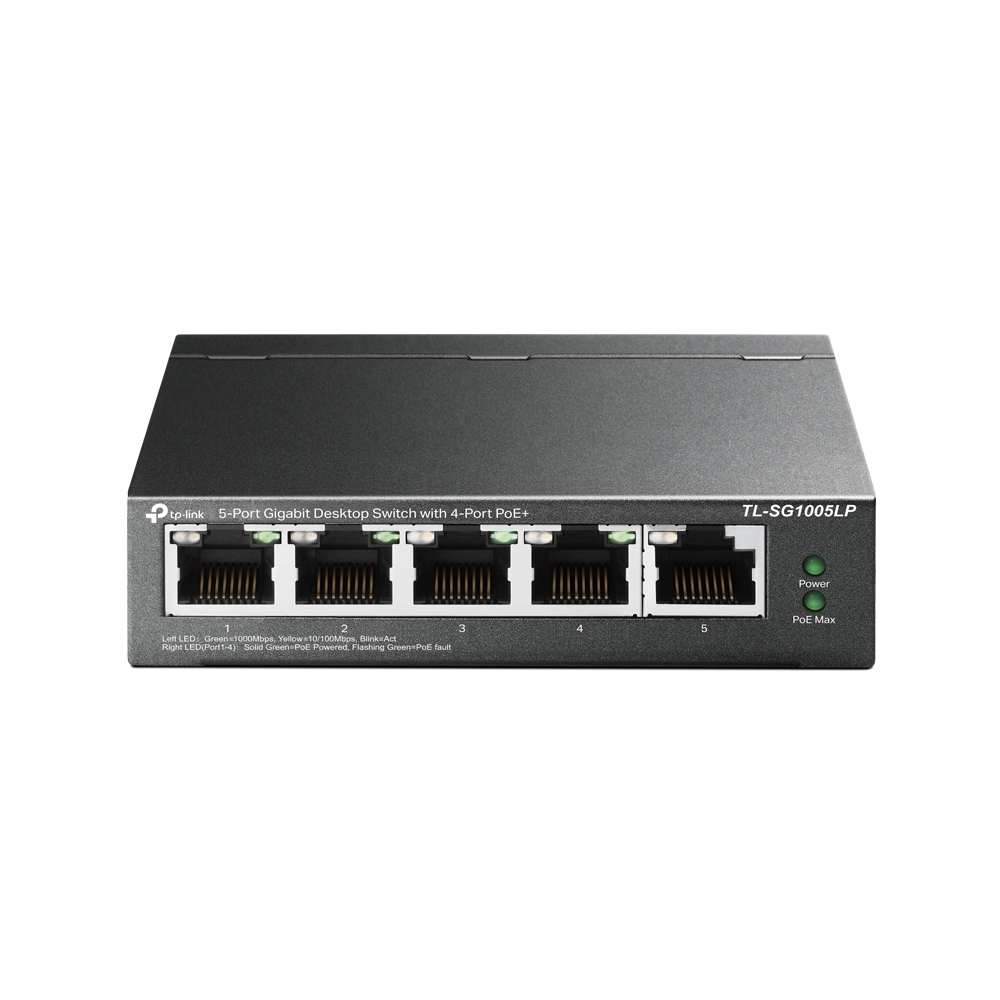

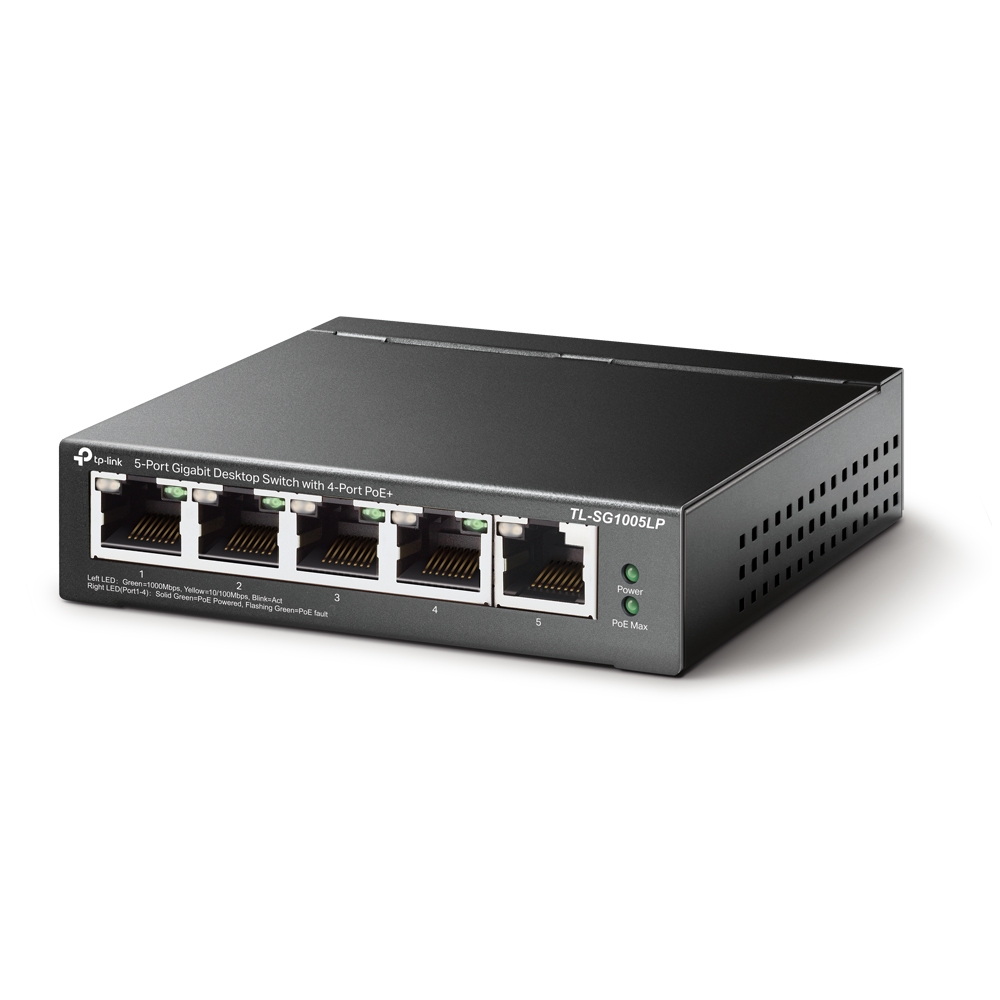

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+
Specifications:
Interface:
• 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
PoE Ports (RJ45):
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 40 W
Fan Quantity: Fanless
External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate: 7.44 Mpps
Mac Address Table: 2K
Jumbo Frame: 16 KB
Switching Capacity: 10 Gbps
Dimensions ( W x D x H ): 3.9×3.9×1.0 in (99.8×98×25 mm)
Warranty: 5 Years
Warranty: 3 Years
| Power Consumption: • 4.12 W (220/50 Hz. no PD connected) • 47.5 W (220/50 Hz. with 40 W PD connected) |
| Interface: • 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
| Dimensions (W x D x H): 3.9×3.9×1.0 in (99.8×98×25 mm) |
| External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A) |
| Warranty: 5 years |
TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
5× 10/100/1000 Mbps RJ45 ports

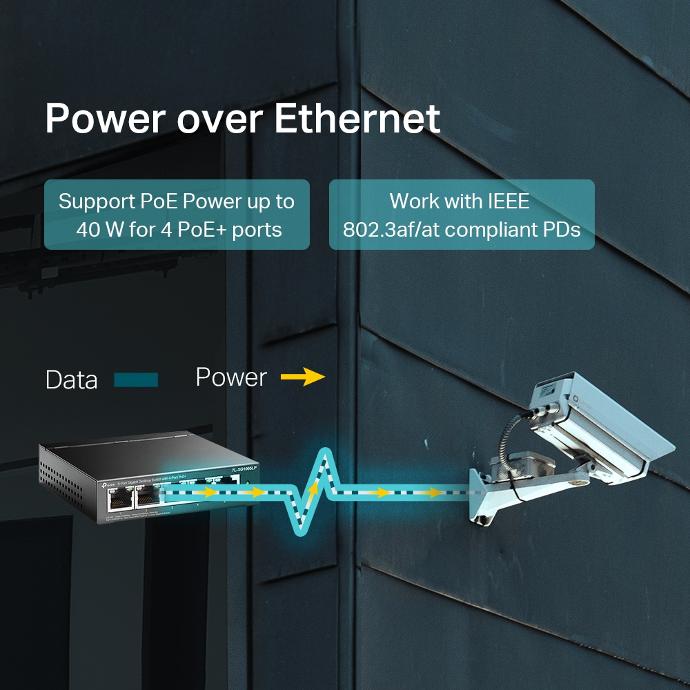

With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 40 W for all PoE ports*

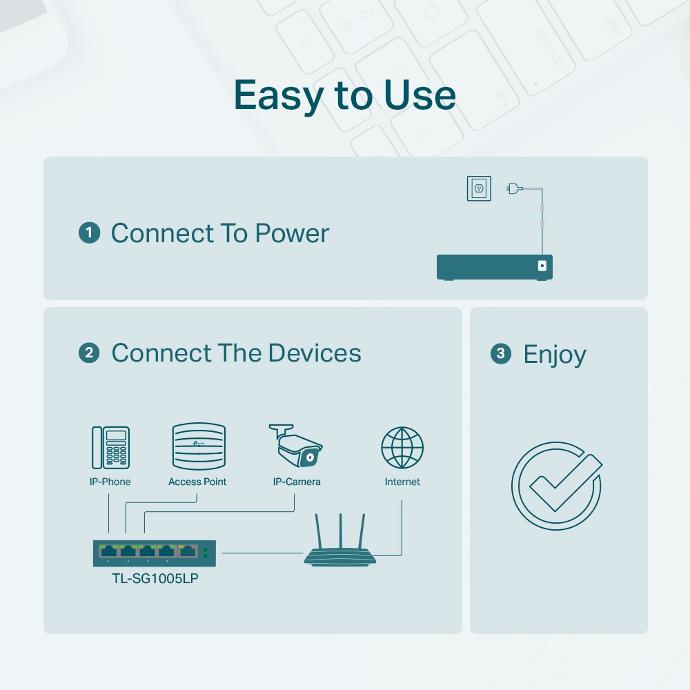

Plug and play, no configuration and installation required
