Right Power Titan Vista 9+ 2K Tower UPS
Capacity: 2KVA/1800W
Input
Input Voltage: 200/208/220/230/240VAC
Voltage Range: 110 - 300VAC
Frequency Range: 40Hz - 70Hz
Phase: Single Phase In / Single Phase Out
Input Power Factor: ≥0.99 @ nominal voltage (100% load)
Output
Output Voltage: 200/208/220/230/240VAC
Output Power Factor: 0.9
AV Voltage Regulation (Batt. Mode): ±1%
Frequency Range (Synchronized Range): 47 - 53Hz or 57 - 63Hz
Current Crest Ration: 3:01
Harmonic Distortion: ≤3% @ THD Linear Load ; ≤6% @ THD Non-Linear Load
Waveform: Pure Sinewave
Transfer Time (AC Mode to Batt. Mode): Zero
Transfer Time (Inverter to Bypass): 4ms (Typical)
Output Socket: 4 x British Socket
Battery
Sealed Lead Acid Maintenance Free Battery: 12V 7AH x 6pcs
Backup Time (Depending on Load): 20 - 30 minutes
Recharge Time: 4 Hrs. to 90%
Charging Current (Max): 1A
Physical
Operating Environment: 0-40℃, 20-90% Relative Humidity (Non-Condensing)
Noise Level: <45dB @ 1 Meter
Dimension (D x W x H (mm)): 421 x 190 x 318
Weight (kg): 22.5
UPS Warranty: 3 Years Full Warranty Include Parts & Labour

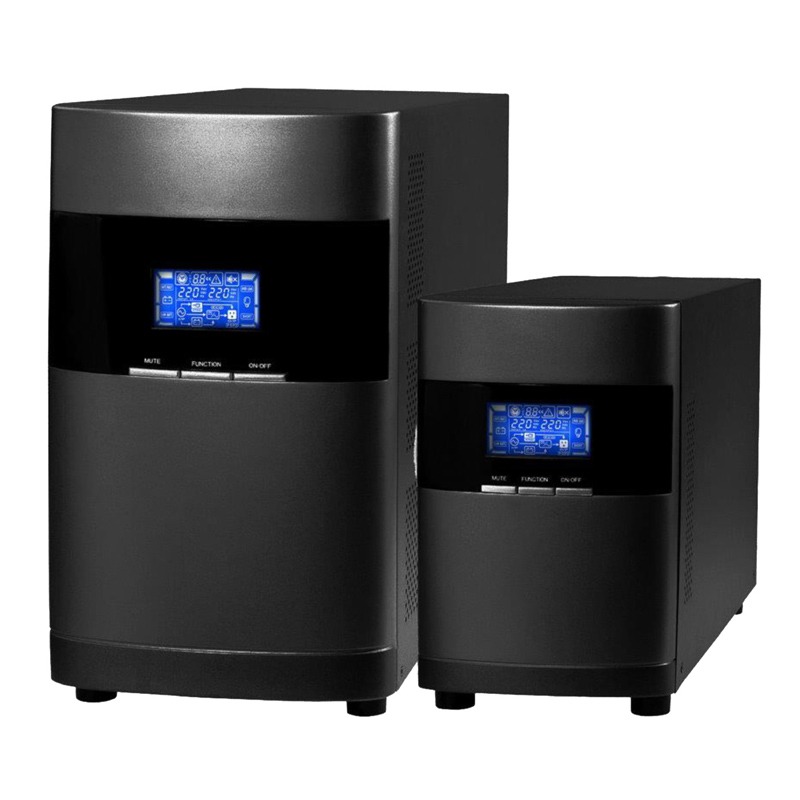

Titan Vista 9+ Series
True Double Conversion Online UPS
The Titan Vista 9+ series is a tower type design with a true double conversion online single-phase UPS system. This series comes with an output power factor of 0.9.
A comprehensive LCD display allows users to easily monitor and access their UPS status. The UPS systems come standard with USB and RS-232 communication ports, as well as an intelligent slot for additional adapters, protocol converters, and relay contact cards. An Emergency Power Off (EPO) function is available which allows UPS to be shut off in the event of an emergency.
The Titan Vista 9+ series system is designed to provide clean, high-quality power to critical devices such as sensitive networks, small computer centers, servers, medical equipment, telecom applications, and industrial applications.
FEATURES
User Friendly LCD Display
Tower Type Design
Output Power Factor 0.9
Microprocessor Control Optimizes Reliability
Converter Mode Available
ECO Mode Function for Energy Saving
Wide Input Range (110V – 300V)
Emergency Power Off Function (EPO)
Adjustable Battery Numbers
Generator Compatible
Comes with USB Port, RS-232 Communication Power, SNMP Slot & Power Management Software
Input Power Factor Correction
Rear Panel
