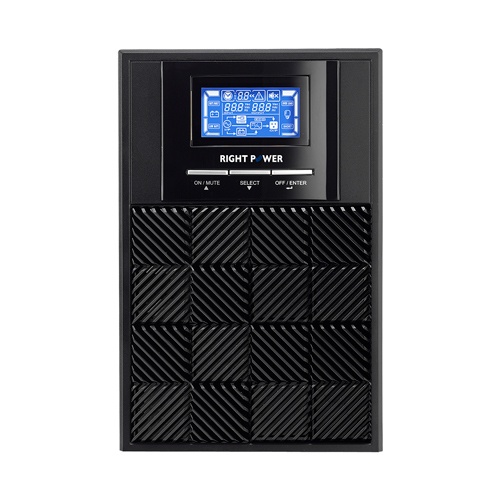

Right Power Titan PRO 2KVA Tower UPS
Phase: Single phase with ground
Capacity: 2000 VA / 1800 W
Input
Nominal Voltage: 208/220/230/240VAC
Input Voltage Range: 60-145 VAC or 120-300 VAC (Based on load at 50%) 90-145 VAC or 180-300 VAC (Based on load at 100%)
Frequency Range: 40 Hz ~ 70 Hz
Power Factor: ≥ 0.99 @ Nominal Voltage (100% load)
Output
Output Voltage: 208/220/230/240VAC
Voltage Regulation: ± 1 %
Frequency Range (Synchronized Range): 47~ 53 Hz or 57 ~ 63 Hz
Frequency Range (Batt. Mode): 50 Hz or 60Hz ± 0.5%
Environment
Humidity: 20-90 % RH @ 0- 40°C (Non-condensing)
Noise Level: Less than 50dB @ 1 Meter
Efficiency
Acmode: 89%
Battery mode: 87%
Physical
Standard model D x W x H (mm): 397 x 145 x 220
Net weight (kg): 17

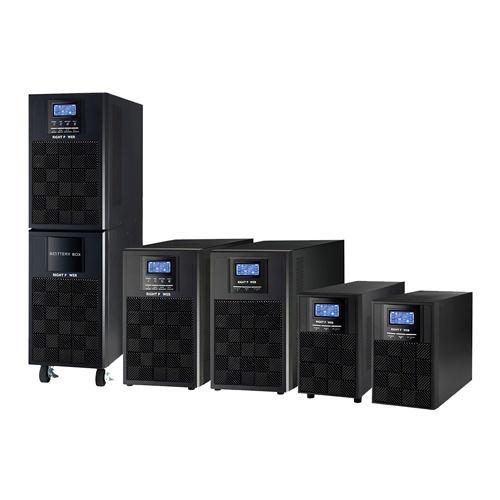

Titan PRO Series
True Double Conversion Online UPS
The Titan PRO series is a tower type design with a true double conversion online single-phase UPS system. This series comes with an output power factor of 0.9.
A comprehensive LCD display allows users to easily monitor and access their UPS status. The UPS systems come standard with USB and RS-232 communication ports, as well as an intelligent slot for additional adapters, protocol converters, and relay contact cards.
An Emergency Power Off (EPO) function is available for the 6KVA-10KVA models, which allows UPS to be shut off in the event of an emergency.
FEATURES
User Friendy LCD Display
Tower Type Design
Output Power Factor 0.9
Wide Input Range (110V - 300V)
Microprocessor Control Optimizes Reliability
Input Power Factor Correction
Converter Mode Available
ECO Mode Function for Energy Saving (1K-3K Model Only)
Adjustable Battery Numbers
Generator Compatible
Emergeny Power Off Function (EPO) (6K-10K Model Only)
Come with RS232, USB Port, SNMP Slot and Power Management Software
Rear Panel
1KVA - 3KVA
