Right Power Titan ONE+ 3K Tower UPS
Capacity: 3KVA / 3000W
Input
Input Voltage: 200/208/220/230/240VAC
Voltage Range: 110~300VAC ± 3% at 50% load
160~280VAC ± 3% at 100% load
Frequency Range: 40 ~ 70 Hz
Phase: Single Phase with Ground
Input Power Factor: ≥ 0.99 @ Nominal Voltage (100% Load)
Output
Output Voltage: 200/208/220/230/240VAC
Output Power Factor: 1
AV Voltage Regulation (Batt. Mode): ±1%
Frequency Range (Synchronized Range): 47 - 53Hz or 57 - 63Hz
Current Crest Ration: 3:01
Harmonic Distortion: ≤ 2% @ Linear Load ; ≤ 4% @ Non-Linear Load
Waveform: Pure Sinewave
Transfer Time (AC Mode to Batt. Mode): Zero
Transfer Time (Inverter to Bypass): 4ms (Typical)
Output Socket: 4 x British Socket
Battery
Battery Type:6 x 12V 9AH
Backup Time (Depending on Load): 20 - 30 minutes
Recharge Time: 3 Hours to 95% capacity for internal battery @ 2A charging current
Charging Current: 2.0A - 12A (Adjustable)
Physical
Operating Environment: 0-40℃, 20-95% Relative Humidity (Non-Condensing)
Noise Level: <50dB @ 1 Meter
Dimension (D x W x H (mm)): 421 x 190 x 318
Weight (kg): 28
UPS Warranty: 3 Years Full Warranty Include Parts & Labour . 2 Years Warranty for Battery

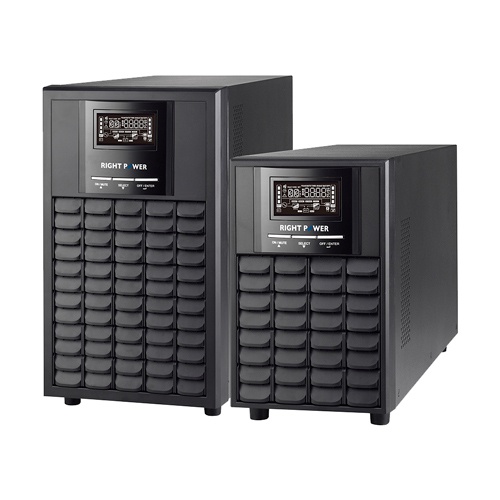

Titan ONE+ Series
True Double Conversion Online UPS
The Titan ONE+ series is a tower type design with a true double conversion online single-phase UPS system. This series comes with an output power factor of 1.0. A comprehensive LCD display allows users to easily monitor and access their UPS status.
The UPS systems come standard with USB and RS-232 communication ports, as well as an intelligent slot for additional adapters, protocol converters, and relay contact cards. An Emergency Power O (EPO) function is available for the 6KVA-10KVA models, which allows UPS to be shut off in the event of an emergency.
The Titan ONE+ series system is designed to provide clean, high-quality power to critical devices such as sensitive networks, small computer centers, servers, medical equipment, telecom applications, and industrial applications.
FEATURES
User Friendly LCD Display
Tower Type Design
Unity Output Power Factor - 1.0
Wide Input Range (110V - 300V)
Programmable Power Management Outlets
ECO Mode Function for Energy Saving
Emergency Power Off (EPO) Function
Smart Battery Charger Design to Optimize Battery Performance
Generator Compatible
Comes with RS 232 & USB Port, SNMP Slot and Power Management Software
Optional N+X Parallel Redundancy

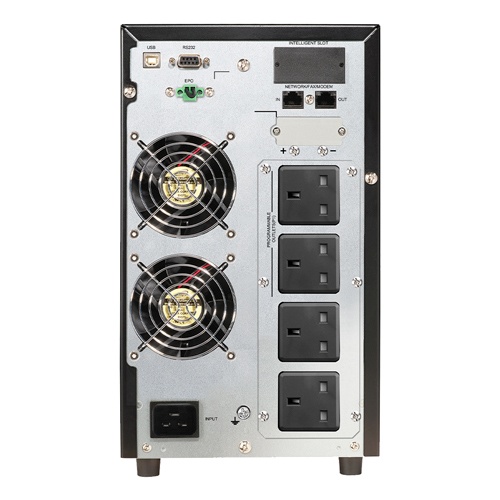

Rear Panel
