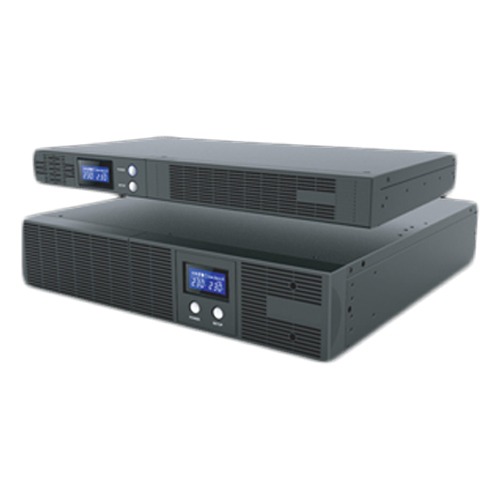

Right Power Smart Cube 3000VA 2U Rackmount
Capacity (VA/WATT): 3000VA/1,800W
Input
Input Voltage: 220V / 230V / 240V
Voltage Range: 165 - 290VAC
Frequency Range: 50Hz or 60Hz (Auto-sensing)
Output
Output Voltage: 220V / 230V / 240V
Frequency (Batt. Mode): 50/60Hz ± 1%Hz
Waveform: Pure Sinewave
Thdv: ≤ 3% @ Linear Load, ≤ 5% @ Non-Linear Load
Transfer Time (Typical): 4ms
Overload Protection: Circuit Breaker or Inner Firmware Protection
Output Socket: 8 x IEC C13
Battery
Sealed Lead Acid Maintenance Free: 12V 9AH x 2
Battery Recharge Time: 4 Hours to 90%
Backup Time (Depending On Load): 15 - 20 minutes
Charger Current: 2A
Status Indicator
LCD Display: Input/Output Voltage, Load Level, Battery Level, AC Mode, Battery Mode, UPS Fault
Audible Alarms: On Battery, Low Battery, Overload, UPS Fault
Physical
Operating Environment: 0-40°C, 0-90% Relative Humidity (Non-Condensing)
Dimension (D x W x H)mm: 400 x 438 x 88 (2U)
Weight (Kg): 22
Warranty: 3 Years for Electronic Parts and 2 Years for Battery Against Manufacturing Defect
Smart Cube FR Series
Pure Sinewave UPS
The Smart Cube FR series is a pure sinewave rackmount UPS. It comes with an LCD panel that displays information such as input voltage, output voltage, battery status, and load level.
This UPS comes with an Automatic Voltage Regulator (AVR) to ensure all connected equipment receives stable power at the same voltage as the utility.
The Smart Cube FR series is the ideal solution for networking equipment, workstations, servers, and mission-critical equipment.
FEATURES
User Friendly LCD Display
LCD display shows information such as input voltage, output voltage, load level and battery capacity.
Built-in Automatic Voltage Regulator (AVR)
Built-in AVR for voltage stabilization to provide clean and stable power to connected equipment. AVR features help to correct high and low voltage without using battery power
Pure Sine Wave Output
Pure sinewave output to meet the equipment's requirements, increasing system effciency.
Power Management Software
Come with USB Port interfaces to support UPS Power Management Software

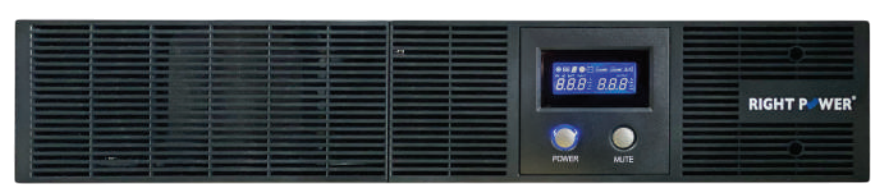

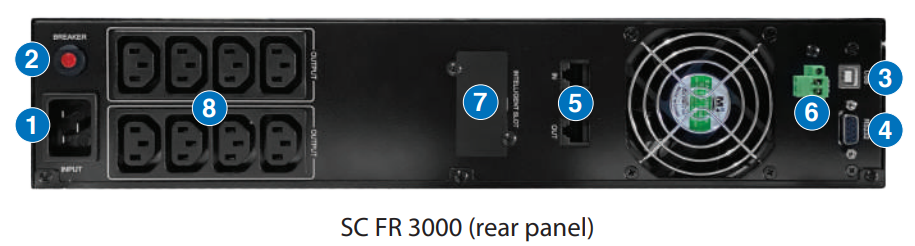

Front & Rear Panel
