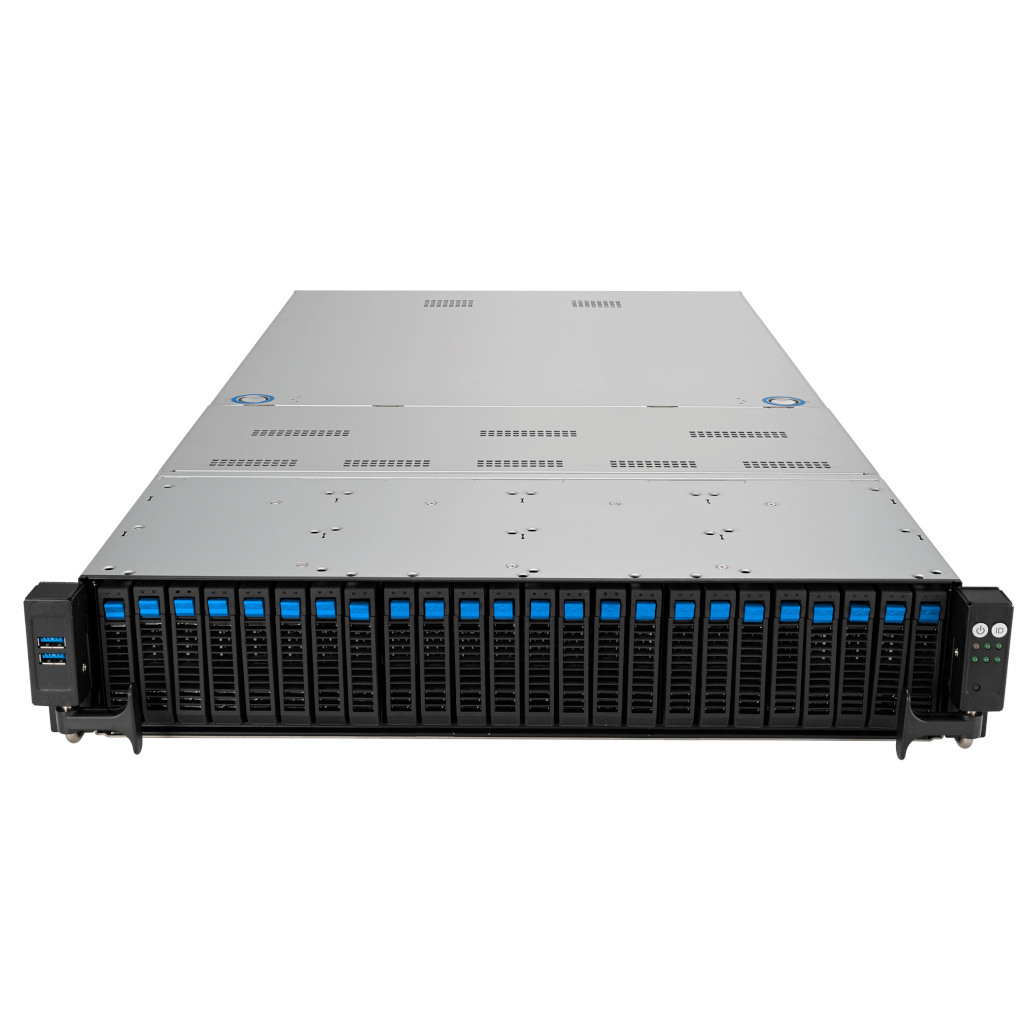

Asus RS720A-E12-RS24U Barebone 2U Rack Server
Form Factor: 2U
System Fan: 4
Graphic: Aspeed AST2600 64MB
Processor / System Bus:
2 x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 Series (up to 400W)
4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
Generation: E12
Memory Slots: 24 (12-channel per CPU, 1 DIMM per CPU)
Capacity: Maximum up to 3072GB per socket
Memory Type: DDR5 4800/4400 RDIMM/ 3DS RDIMM
Memory Size:
128GB, 64GB, 32GB RDIMM
128GB, 64GB, 32GB 3DS RDIMM
Expansion Slots
Configuration #1 (Non-GPU support)
Up to 9 x Expansion slots + 1 x internal RAID slot
6 x PCIe Gen5 x8 or 3 x PCIe Gen5 x16 (FHFL)
2 x PCIe Gen5 x8 or 1 x PCIe Gen5 x16 or 1 x OCP3.0 (FHFL)
1 x PCIe Gen5 x16 (LPHL)
1 x PCIe Gen4 x8 (LP, internal)
Configuration #2 (GPU support)
Up to 9 x Expansion slots + 1 x internal RAID slot
6 x PCIe Gen5 x8 or 3 x PCIe Gen5 x16 (FHFL)
2 x PCIe Gen5 x8 or 1 x PCIe Gen5 x16 (FHFL)
1 x PCIe Gen5 x16 (LPHL)
1 x PCIe Gen4 x8 (LP, internal)
Storage:
SATA Controller:
8 x SATA 6Gb/s ports
2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)
SAS Controller:
Braodcom HBA CARD 9500-16i (Optional)
Broadcom MegaRAID 9540-8i (Optional)
Broadcom MegaRAID 9560-16i (Optional)
NVMe Controller:
SupremeRAID™ from Graid SR1001 (support up to 4 NVMe) (Optional)
SupremeRAID™ from Graid SR1000 (support up to 24 NVMe) (Optional)
SupremeRAID™ from Graid SR1010 (support up to 24 NVMe) (Optional)
Drive Bays:
24 x 2.5" hot-swap drive bays
Support up to 16NVMe + 8NVMe/SATA/SAS*
*RAID card is required to support SAS hard drives.
*NVMe is only supported through Gen4 on switch boards.
Networking:
Configuration #1 (Non-GPU support)
1 x Mgmt LAN
4 x1Gbe(Intel I350-AM4) RJ45 port (optional) or 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)
Configuration #2 (GPU support)
1 x Mgmt LAN
2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)
Front I/O Ports: 2 x USB 3.2 Gen1 ports

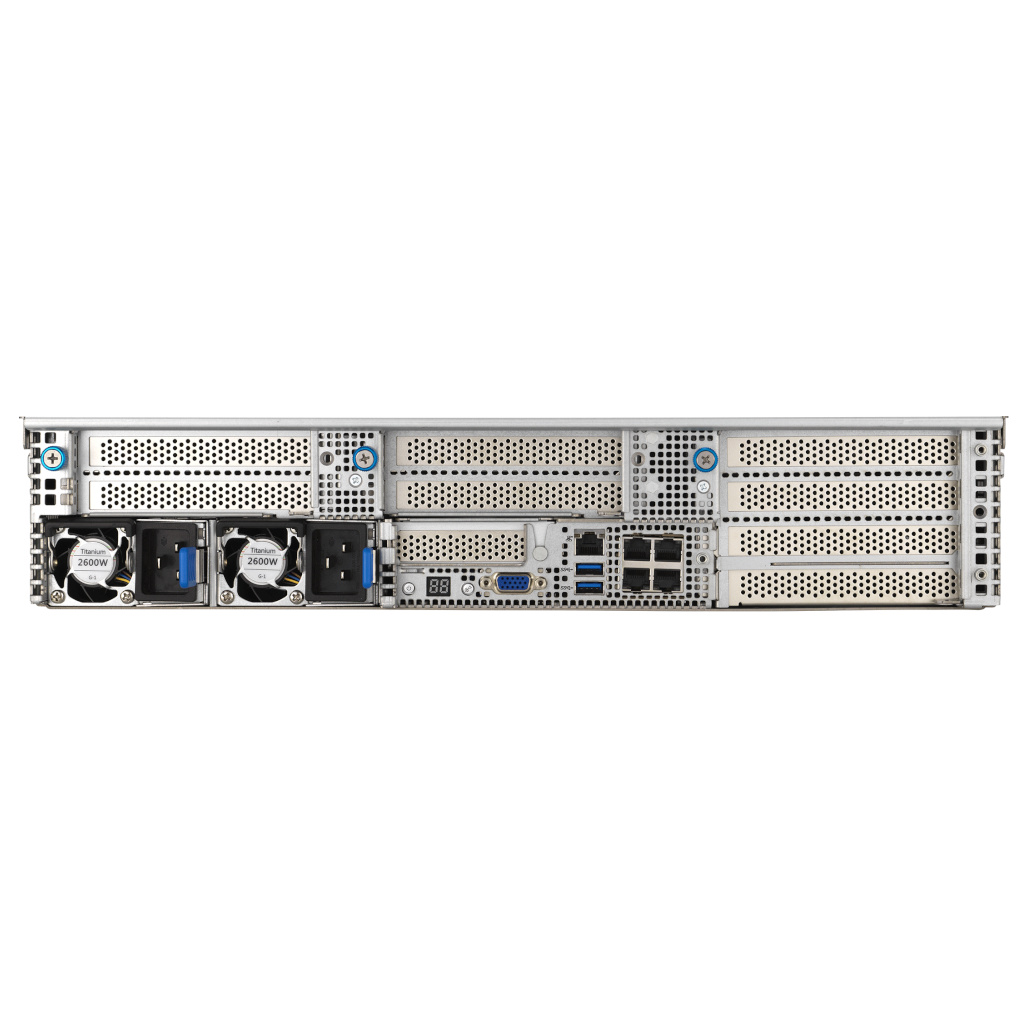

Rear I/O Ports:
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Mgmt LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional)
1 x OCP3.0 port (Optional)
