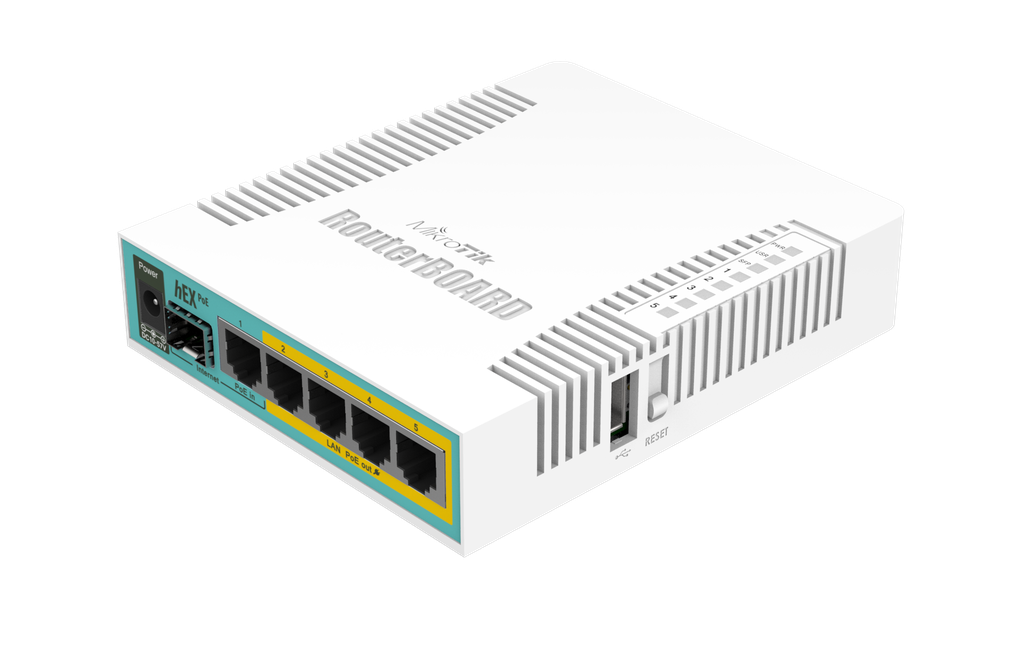

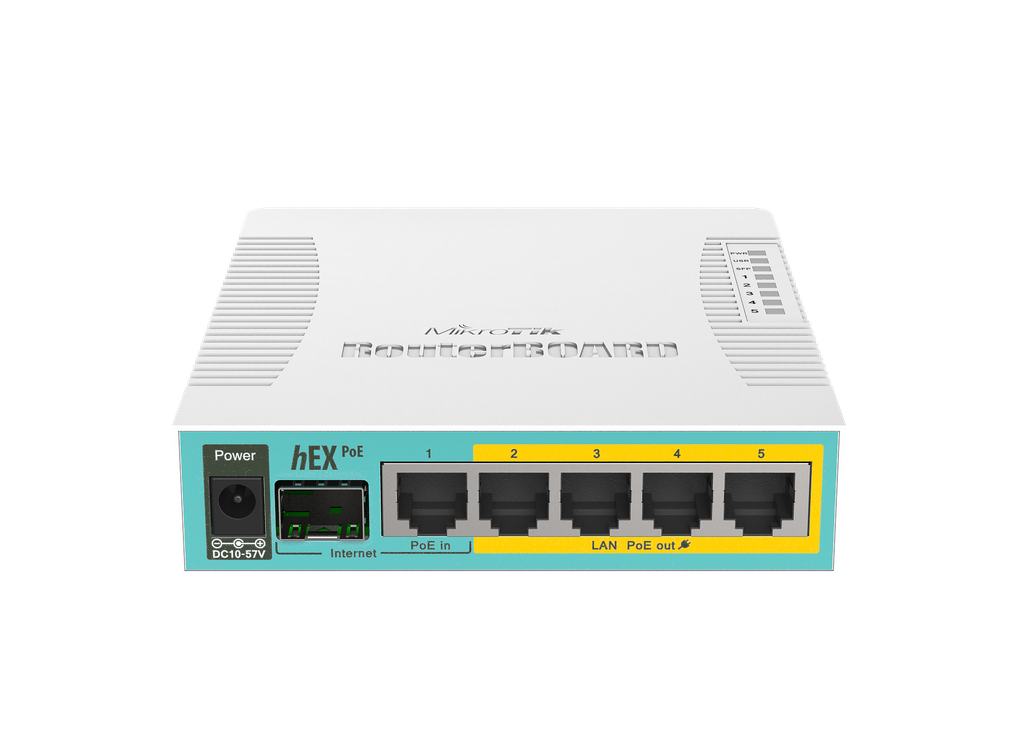

Mikrotik Router HEX POE

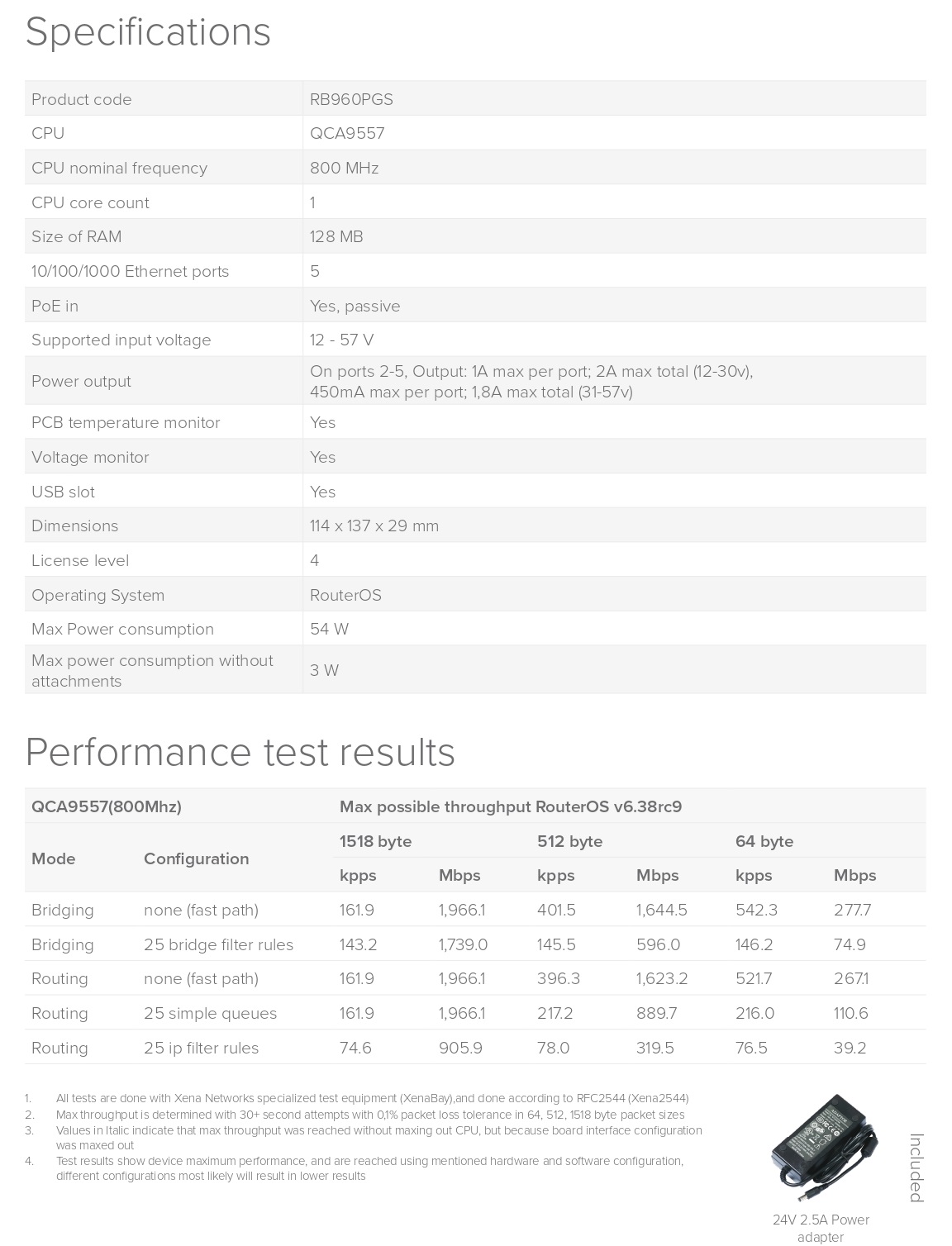

Product code: RB960PGS
Architecture: MIPSBE
CPU: QCA9557
CPU core count: 1
CPU nominal frequency: 800 MHz
Switch chip model: QCA8337
RouterOS license: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 60°C
10/100/1000 Ethernet ports: 5
SFP ports: 1
Number of USB ports: 1
USB Power Reset: Yes
USB slot type USB type: A
Max USB current (A): 1
hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
