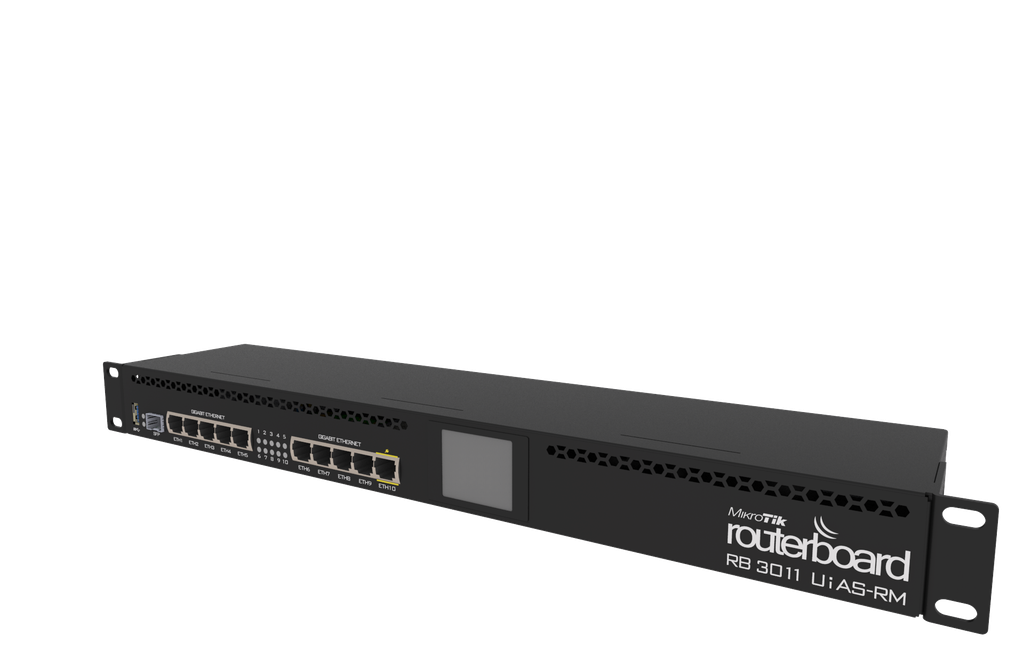

Mikrotik RouterBOARD 3011UiAS-RM 1U Rackmount

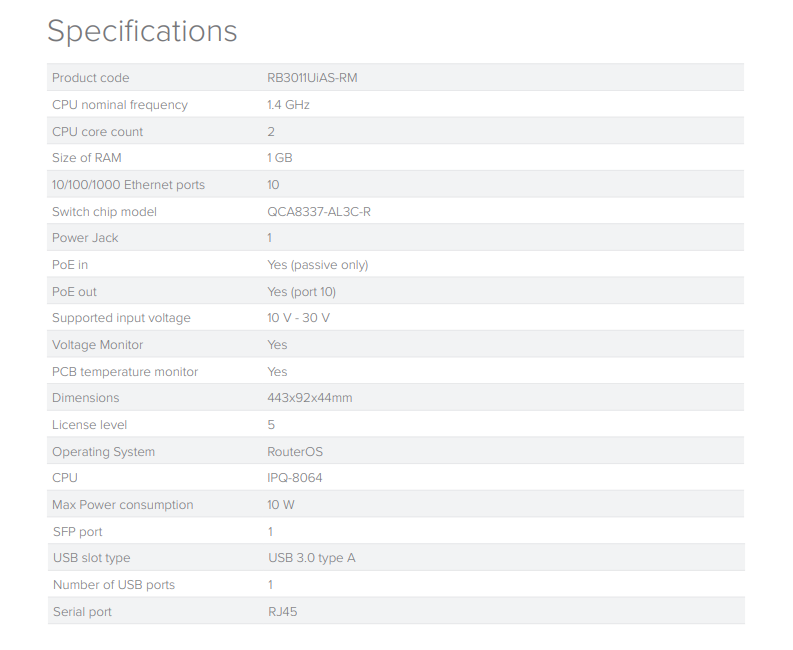

Product code: RB3011UiAS-RM
Architecture: ARM 32bit
CPU: IPQ-8064
CPU core count: 2
CPU nominal frequency: 1.4 GHz
Switch chip model: QCA8337
Dimensions: 443 x 92 x 44 mm
RouterOS license: 5
Operating System: RouterOS
Size of RAM: 1 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -20°C to 70°C
IPsec hardware acceleration: Yes
PoE-out ports: Ether10
PoE out: Passive PoE
Max out per port output (input 18-30 V): 600 mA
Max total out (A): 600 mA
10/100/1000 Ethernet ports: 10
SFP ports: 1
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB 3.0 type A
Max USB current (A): 1

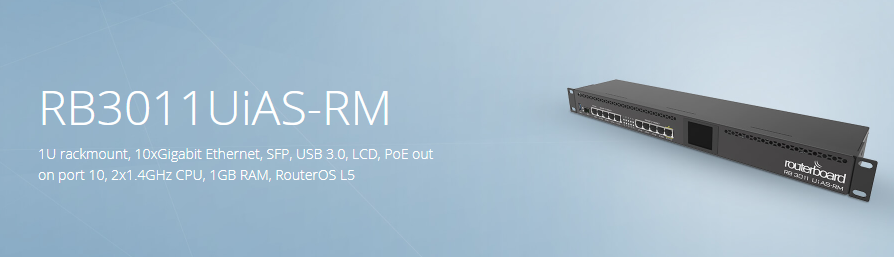

The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

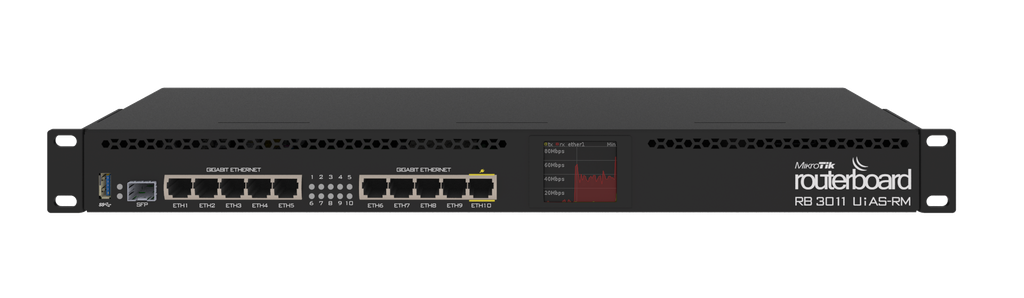

RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.
