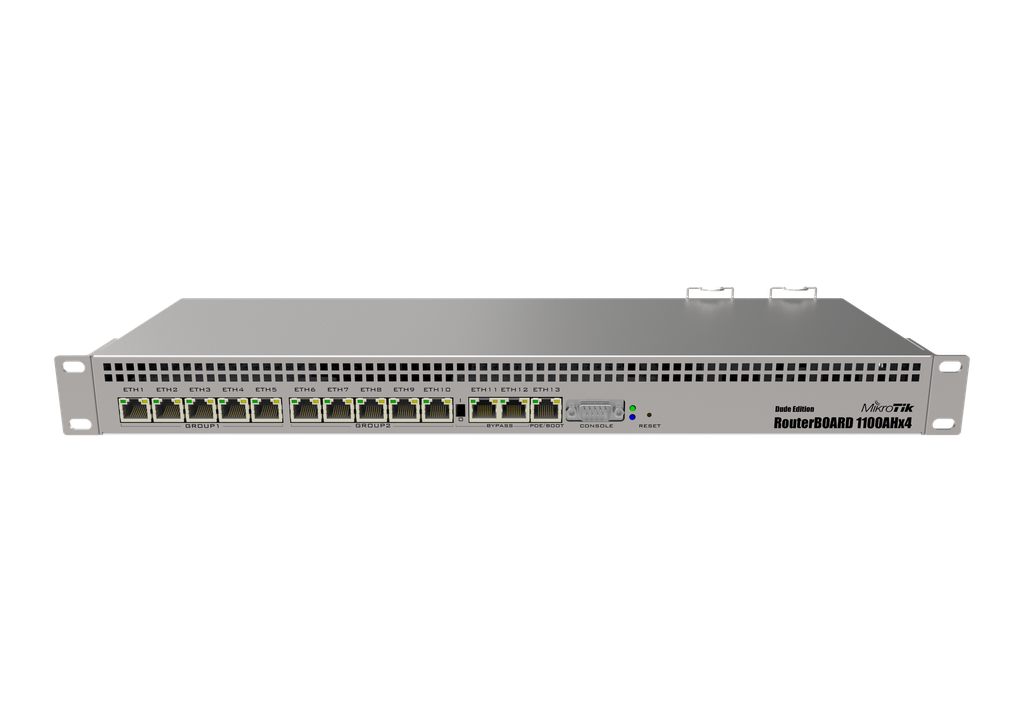

Mikrotik RB1100AHx4 Router
Product code: RB1100x4
Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4
CPU nominal frequency: 1.4 GHz
Switch chip model: RTL8367
Dimensions: 443 x 148 x 44 mm
RouterOS license: 6
Operating System: RouterOS
Size of RAM: 1 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes
10/100/1000 Ethernet ports: 13
Memory card type: microSD
Memory Cards: 1
Serial console port: RS232

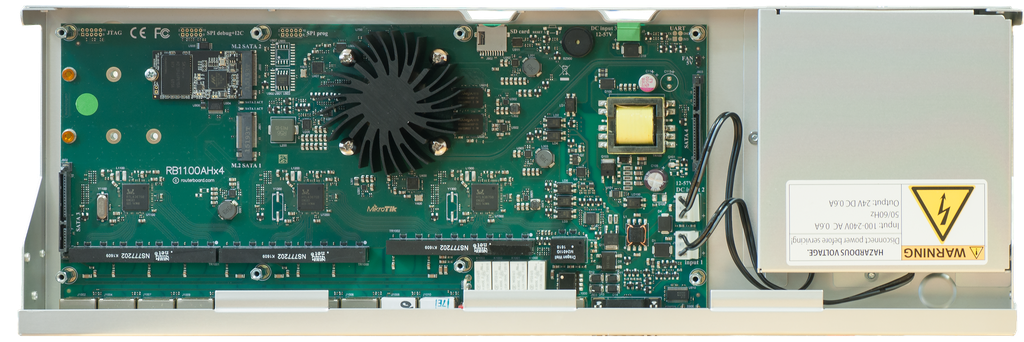

The new RB1100AHx4 series of devices uses a new quad core Cortex A15 chip from Annapurna labs, an Amazon company, The chip is clocked at 1.4 GHz, for a maximum throughput of up to 7.5 Gbit. The devices support IPsec hardware acceleration and are faster at it than any previous RouterBOARD device.

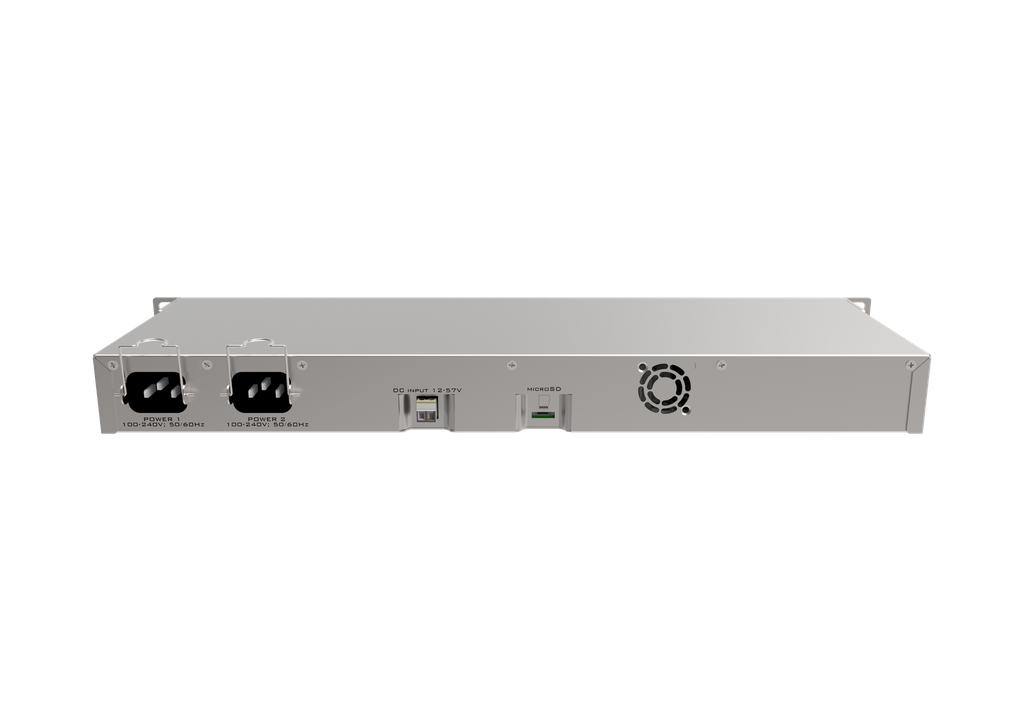

The RB1100AHx4 feature two IEC failover power connectors, support 802.3at PoE input and also have a DC telecom power connector for -48 V DC powering.
