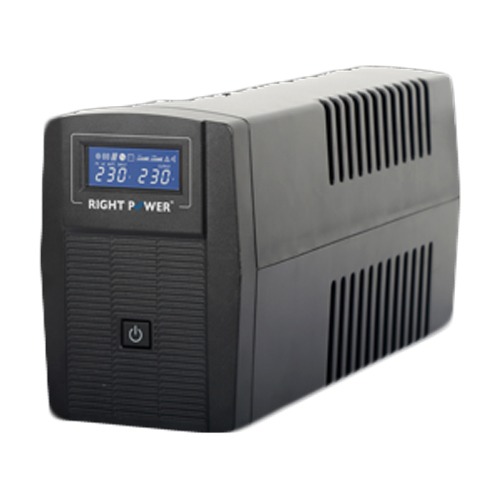

Right Power PowerTank F 2200VA Profesional UPS
Capacity (VA): 2200VA
Input
Input Voltage: 220V / 230V / 240V
Voltage Range: 162 - 290VAC
Frequency Range: 50Hz or 60Hz
Output
Output Voltage: 220V / 230V / 240V
AC Voltage Regulation (Batt. Mode): ± 10%
Output Frequency: 50Hz or 60Hz +/-1%
Waveform: Simulated Sinewave
Transfer Time (Typical): 4ms
Output Socket: 4 x British Socket
Battery
Sealed Lead Acid Maintenance Free: 12V 9AH x 2
Hot-Swappable Battery: Yes
Backup Time (Depending On Load): 20 to 30 minutes
Status Indicator
LCD Display: Input Voltage , Output Voltage, Battery Capacity, Load Level, UPS Status
Audible Alarms: On Battery, Low Battery, Overload, UPS Fault
Communication
Interface: USB Port
Physical
Operating Environment: 0-40°C, 0-90% Relative Humidity (Non-Condensing)
Noise Level: Less Than 45dB
Dimension (D X W X H)mm: 298 x 148 x 178
Weight (kg): 10.8
Warranty: 3 Years for Electronic Parts and 2 Years for Battery Against Manufacturing Defect
PowerTank F Series
Line Interactive UPS
The PowerTank F Series uses a line interactive topology UPS which comes with a simulated sinewave output and an LCD panel to display information such as input voltage, output voltage, battery capacity, load level, and UPS fault.
This UPS comes with UPS power management software (Optional). It allows remote monitoring and management of one to multiple UPSs in a networked environment, either LAN or Internet, to prevent data loss from power outages and safely shutdown systems, but also stores programming data and scheduled shutdown UPSs. It comes with optional PowerMaster Cloud subscription-based software for UPS monitoring via cloud capability.
FEATURES
LCD Display
LCD display shows information such as input voltage, output voltage, battery capacity, load level and UPS status.
Cold Start Function
The UPS can be turned on with battery alone without input connected to grid.
Output Socket
Comes with 3 or 4 x 13Amp British Output Socket c/w Safety Window
Built-in AVR
Built-in AVR for voltage stabilization to provide clean and stable power to connected equipment. AVR features help to correct high and low voltage without using battery power
Data Line Protection (RJ11/RJ45)*Optional
The data line protection safeguards modem, fax or network line against surge or spike
Power Management Software *Optional
Come with USB Port interfaces to support UPS Power Management Software
Power Management Software *Optional
PowerMaster Cloud is a subscription-based software that adopts the client-server architecture, allowing users to remotely access the system through a web browser or APP on a smart phone. It consists of a UPS, PowerMaster Cloud software, or a Cloud management card that collects detailed information from each UPS and sends it to the Power Master Cloud server. Users can manage multiple UPS with one user account.
PowerMaster Cloud software can be used in two ways:
i. Power Management with PowerMaster Cloud Software
UPS management system via USB or Serial Port which requires a standby computer installed with “Power Master Cloud” software. Through network connection from the standby computer, the users can monitor the UPS via Cloud website or Cloud APP.
ii. Power Management with CMCard
By installing CMCARD to the UPS and connecting with the network.

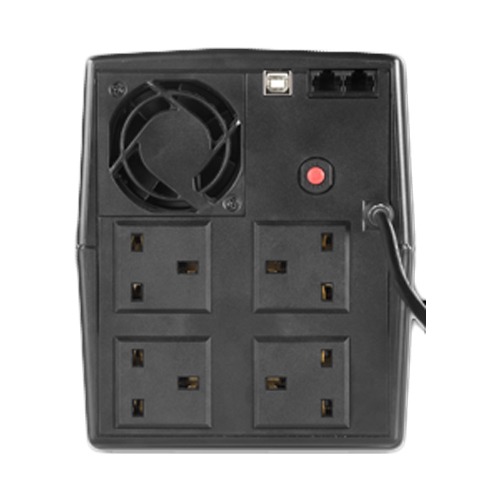

Rear Panel
1000VA - 2200VA
