  2. Right Power PowerBridge ONE+ 6K Rackmount/Tower UPS
MYR

Right Power PowerBridge ONE+ 6K Rackmount/Tower UPS

https://server2u.com/web/image/product.template/61095/image_1920?unique=97d0b11

Capacity: 6KVA / 6,000W
Input
Input Voltage: 208/220/230/240VAC
Voltage Range: 110~300VAC (Based on load at 50%) 176~300VAC (Based on load at 100%)
Frequency Range: 46~54 Hz or 56~64 Hz
Phase: Single Phase with Ground
Input Power Factor: ≥ 0.99 @ 100% load
Output
Output Voltage: 208/220/230/240VAC
Output Power Factor: 1
AV Voltage Regulation (Batt. Mode): ±1%
Frequency Range (Synchronized Range): 46~54 Hz or 56~64 Hz
Current Crest Ration: 3:01
Harmonic Distortion: ≤ 1 % THD (Linear Load), ≤ 4 % THD (Non-linear Load)
Waveform: Pure Sinewave
Transfer Time (AC Mode to Batt. Mode): Zero
Transfer Time (Inverter to Bypass): Zero
Output Socket: Terminal Block
Battery
Battery Type:20 x 12V 7AH
Backup Time (Depending on Load): 20 - 30 minutes depending on load
Recharge Time: 9 Hours to 90% capacity
Charging Current: 1.0A - 4.0A (Adjustable)
Physical
Operating Environment: 0-40°C, 20 - 90% Relative Humidity (Non-Condensing)
Noise Level: < 55dB @ 1 Meter
Dimension (D x W x H (mm)): UPS : 600 x 438 x 88 (2U) Battery Pack: 600 x 438 x 133 (3U)
Weight (kg): UPS : 17 Battery Pack : 57
UPS Warranty: 3 Years Full Warranty Include Parts & Labour. 2 Years Warranty for Battery

Part Number: PowerBridge ONE+ RT 6K

RM 8,670.00 8670.0 MYR RM 8,670.00

RM 8,670.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    PowerBridge ONE+ RT Series

    True Double Conversion Online UPS


    The PowerBridge ONE+ RT series is a true double conversion online single-phase UPS that comes in tower and rackmount 2-in-1 convertible design. This series comes with an output power factor of 1.0.
    The PowerBridge ONE+ series comes with an easy-shift rotatable LCD panel to meet various installation requirements while also ensuring proper viewing orientation for users monitoring the UPS system. An Emergency Power Off (EPO) function is available which allows UPS to be shut down in the event of an emergency.
    The PowerBridge ONE+ series system is designed to provide clean, high-quality power to critical devices such as sensitive networks, small computer centers, servers, medical equipment, telecom applications, and industrial applications.

    FEATURES

    Tower/Rackmount 2 in 1 Convertible Design
    User Friendly LCD Display
    Unity Output Power Factor - 1.0
    Wide Input Range (110V - 300V)
    ECO Mode Function for Energy Saving
    Programmable Power Management Outlets
    Hot Swappable Battery Design
    Low Input THDi to Reduce Power System Pollution
    Comes with RS 232 & USB Port, SNMP Slot and Power Management Software
    Provides Over Voltage Cut-Off Protection & Surge Immunity by MOV for full Time Equipment Protection

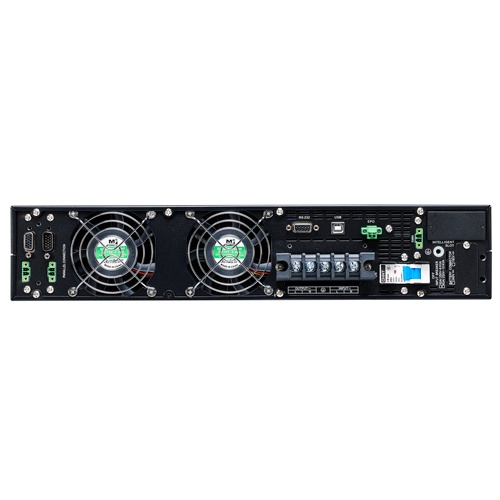

    Rear Panel



    1. Input/Output Terminal
    2. Intelligent Slot
    3. Battery Connector
    4. Input Breaker

    5. Emergency Power Off (EPO) Connector
    6. USB Port Communication Port
    7. RS 232 Port Communication Port
    8. Parallel Connection
