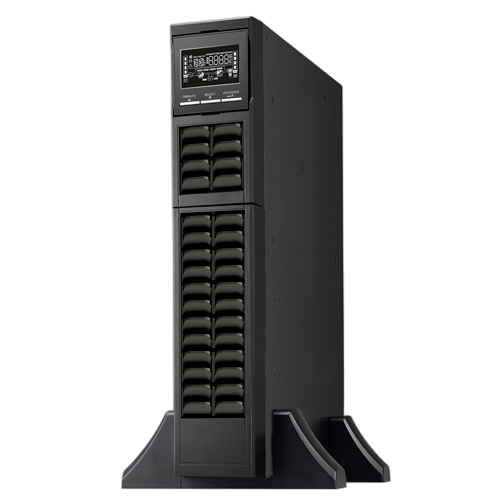

Right Power PowerBridge ONE+ 2K Rackmount/Tower UPS

https://server2u.com/web/image/product.template/61092/image_1920?unique=0a8e636

Capacity: 2KVA / 2000W
Input
Input Voltage: 200/208/220/230/240VAC
Voltage Range: 110~300VAC (Based on load at 50%) 160~280VAC (Based on load at 100%)
Frequency Range: 40~70 Hz
Phase: Single Phase with ground
Input Power Factor: ≥ 0.99 @ nominal voltage (100% load)
Output
Output Voltage: 200/208/220/230/240VAC/
Output Power Factor: 1
AV Voltage Regulation (Batt. Mode): ±1%
Frequency Range (Synchronized Range): 47~53 Hz or 57~63 Hz
Current Crest Ration: 3:01
Harmonic Distortion: ≤ 2 % THD (Linear Load), 4 % THD (Non-linear Load)
Waveform: Pure Sinewave
Transfer Time (AC Mode to Batt. Mode): Zero
Transfer Time (Inverter to Bypass): 4ms (Typical)
Output Socket: 8 x IEC C13 Socket
Battery
Battery Type:6 x 12V 7AH
Backup Time (Depending on Load): 20 - 30 minutes
Recharge Time: 3 hours recover to 95% capacity for internal battery@ 2A charging current
Charging Current: 200/208/220/230/240 VAC models: default 2.0A, max. 12A adjustable
Physical
Operating Environment: 0-40°C, 20 - 95% Relative Humidity (Non-Condensing)
Noise Level: Less than 50dB @ 1 Meter
Dimension (D x W x H (mm)): 630 X 438 X 88 (2U)
Weight (kg): 23.3
UPS Warranty: 3 Years Full Warranty Include Parts & Labour. 2 Years Warranty for Battery

Part Number: PowerBridge ONE+ RT 2K

RM 3,920.00 3920.0 MYR RM 3,920.00

RM 3,920.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    PowerBridge ONE+ RT Series

    True Double Conversion Online UPS


    The PowerBridge ONE+ RT series is a true double conversion online single-phase UPS that comes in tower and rackmount 2-in-1 convertible design. This series comes with an output power factor of 1.0.
    The PowerBridge ONE+ series comes with an easy-shift rotatable LCD panel to meet various installation requirements while also ensuring proper viewing orientation for users monitoring the UPS system. An Emergency Power Off (EPO) function is available which allows UPS to be shut down in the event of an emergency.
    The PowerBridge ONE+ series system is designed to provide clean, high-quality power to critical devices such as sensitive networks, small computer centers, servers, medical equipment, telecom applications, and industrial applications.

    FEATURES

    Tower/Rackmount 2 in 1 Convertible Design
    User Friendly LCD Display
    Unity Output Power Factor - 1.0
    Wide Input Range (110V - 300V)
    ECO Mode Function for Energy Saving
    Programmable Power Management Outlets
    Hot Swappable Battery Design
    Low Input THDi to Reduce Power System Pollution
    Comes with RS 232 & USB Port, SNMP Slot and Power Management Software
    Provides Over Voltage Cut-Off Protection & Surge Immunity by MOV for full Time Equipment Protection

    Rear Panel




    1. IEC Output Socket
    2. Input Socket
    3. SNMP Network Management Card Slot
    4. EPO
    5. USB Port
    6. RS 232 Port
    7. RJ 45 (1in1out) Network/Fax/Modem
    8. External Battery Connection
