Right Power PowerBridge 9+ 1KVA Rackmount/Tower UPS
Capacity: 1KVA/900W
Input
Input Voltage: 200/208/220/230/240VAC
Voltage Range: 110 - 300VAC ±5% (Based on load at 50%) 160 - 300VAC ± 5% (Based on load at 100%)
Frequency Range: 40Hz - 70Hz
Phase: Single Phase with Ground
Input Power Factor: ≥0.99 @ nominal voltage (100% load)
Output
Output Voltage: 200/208/220/230/240VAC
Output Power Factor: 0.9
AV Voltage Regulation (Batt. Mode): ±1%
Frequency Range (Synchronized Range): 47 - 53Hz or 57 - 63Hz
Current Crest Ration: 3:01
Harmonic Distortion: ≤ 2% @ Linear Load ; ≤ 4% @ Non-Linear Load
Waveform: Pure Sinewave
Transfer Time (AC Mode to Batt. Mode): Zero
Transfer Time (Inverter to Bypass): 4ms (Typical)
Output Socket: 8 x IEC Socket
Battery
Battery Type: 2 x 12V 9AH / 3 x 12V 7AH
Backup Time (Depending on Load): 20 - 30 minutes
Recharge Time: 4 Hrs. to 90%
Charging Current (Max): 1.5A
Physical
Operating Environment: 0-40℃, 20-90% Relative Humidity (Non-Condensing)
Noise Level: <50dBA @ 1 Meter
Dimension (D x W x H (mm)): 410 x 438 x 88 (2U)
Weight (kg): 11.6 / 14.2
UPS Warranty: 3 Years Full Warranty Include Parts & Labour . 2 Years Warranty for Battery
PowerBridge 9+ RT Series
High Power Density Rack/Tower Online UPS

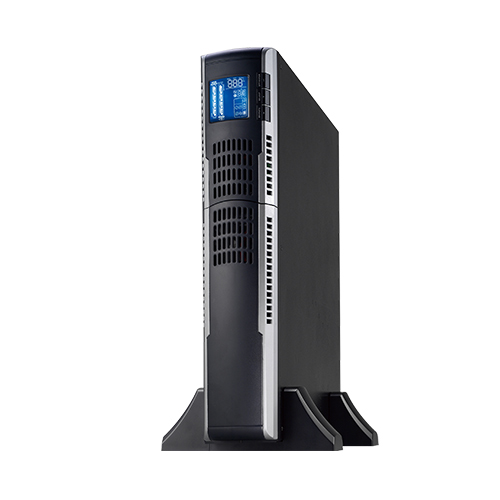

PowerBridge 9+ RT series is a true online double conversion single phase UPS system. This UPS is available in tower / rackmount 2-in-1 convertible design. It comes with easy-shift rotatable LCD panel to meet different installation requirements as well as ensuring proper viewing orientation for users to monitor the system.
This UPS model comes with Emergency Power Off (EPO) function which allows the UPS to be shut o in the event of an emergency.
FEATURES
LCD Display
Easy-Shift Rotatable LCD panel to meet different installation requirements as well as ensuring proper viewing orientation for users to monitor the system.

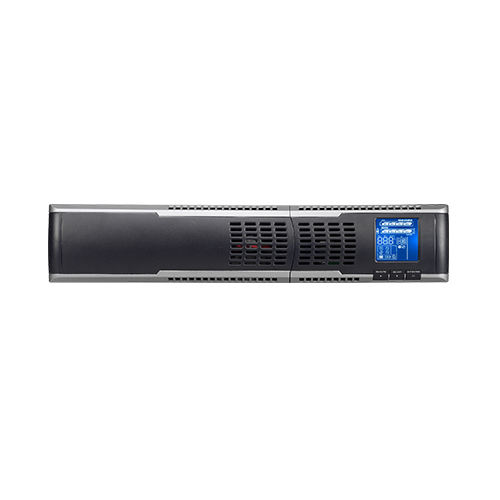

Tower & Rackmount 2 in 1 Convertible Design
Suitable for horizontal rack or vertical tower installation.
Hot-Swappable Battery Design
UPS battery replacement can be performed without powering down the UPS
Emergency Power Off (EPO) Function
Allows the UPS to be shut off in the event of an emergency if the EPO port is connected to an EPO switch.
Power Management Software
Come with RS 232 Port & USB Port interfaces to support UPS Power Management Software

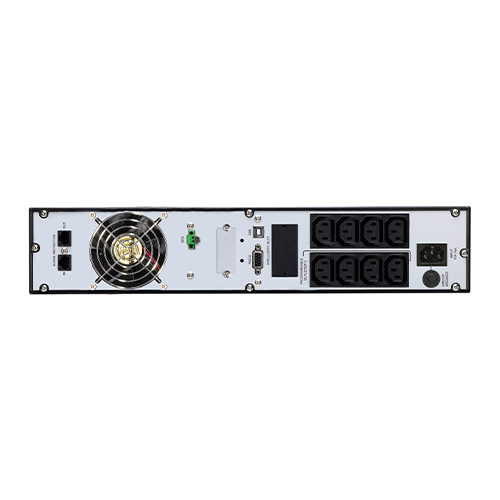

Rear Panel
1. AC Input
2. Input Circuit Breaker
3. USB Communication Port
4. RS-232 Communication Port
5. Network/Fax/Modem Surge Protection (RJ45)
6. EPO Connector
7. Intelligent Slot
8. 6 x IEC Output Socket
9. 1 x IEC C19
10. Cooling Fan
11. External Battery Connector
