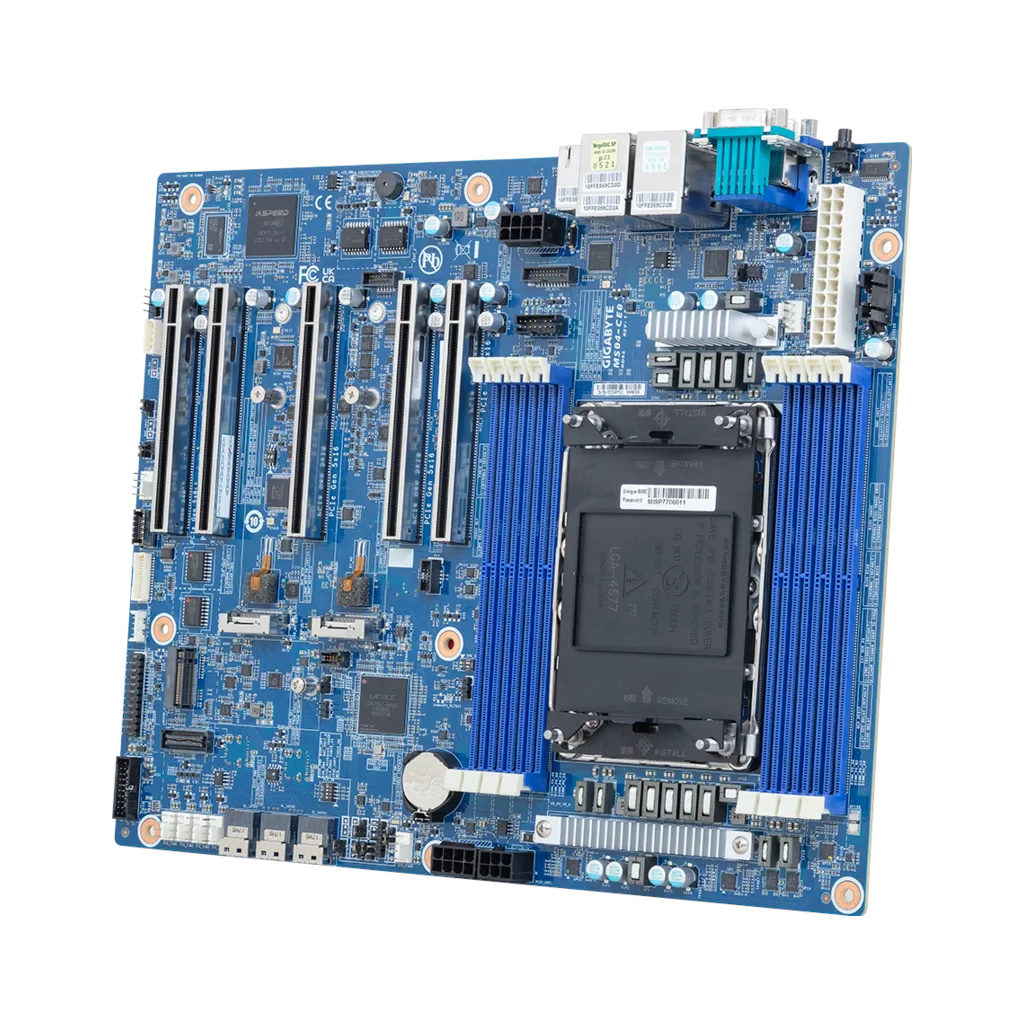

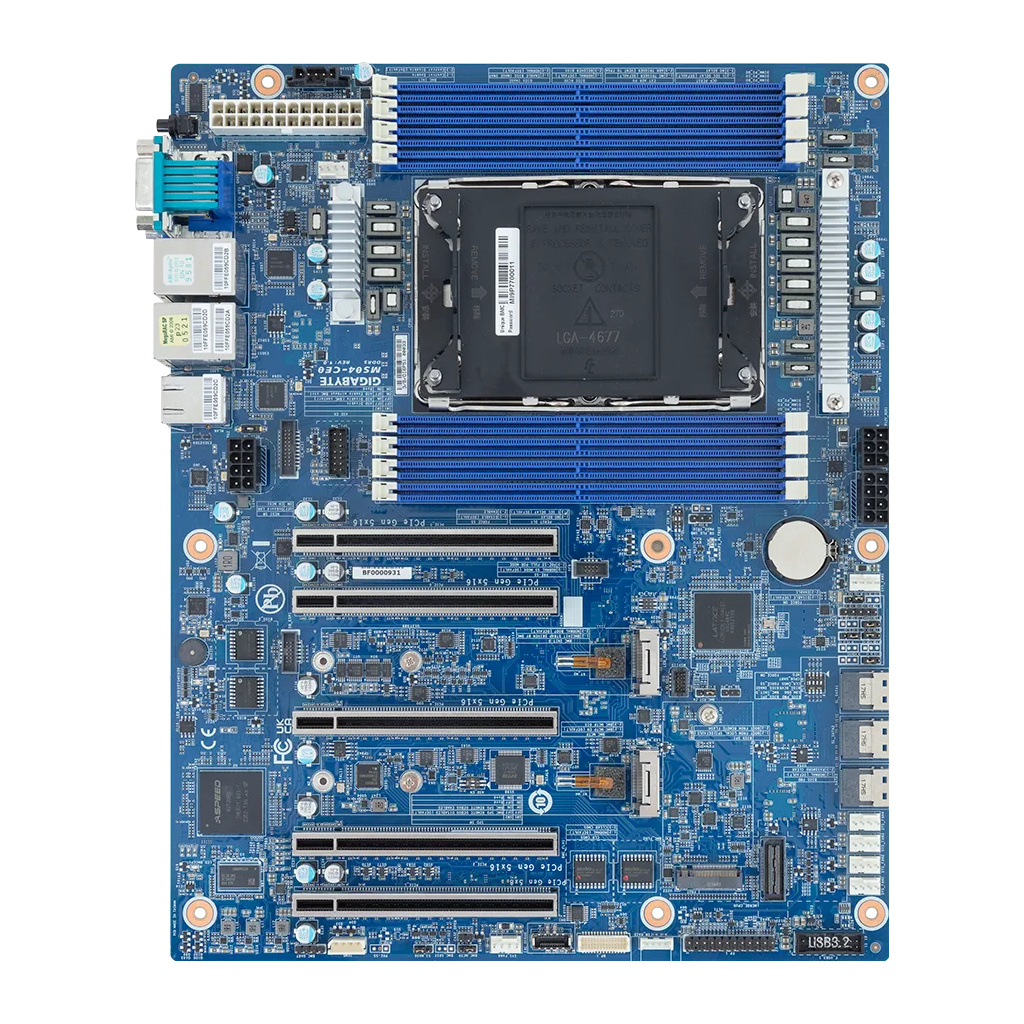

Gigabyte MS04-CE0 ATX Motherboard

Overview

The Gigabyte MS04-CE0 is a high-performance, server-grade ATX motherboard designed for professional workloads, including data center servers, storage systems, and high-performance computing (HPC). It is built around a single-socket Intel Xeon 6700/6500-series processor (Sapphire Rapids-SP) and leverages the latest technologies like PCIe 5.0 and DDR5 memory to deliver significant performance and bandwidth.

Key Features & Detailed Analysis

1. Processor (CPU):

• Single Intel Xeon 6700/6500-Series: This refers to the 4th Gen Intel Xeon Scalable "Sapphire Rapids-SP" processors.
  • Target Market: This is a single-socket platform, ideal for applications where the extreme core count of a dual-socket system isn't necessary, offering a excellent balance of performance, power efficiency, and cost.
  • Capabilities: These CPUs offer high core counts (up to 48 cores in the 6700-series), support for AVX-512 and Intel's new AMX (Advanced Matrix Extensions) for AI acceleration, and integrated Intel accelerators for specific workloads like data analytics, cryptography, and compression.

2. Memory (RAM):

• 8-Channel DDR5 RDIMM / MRDIMM: This is a top-tier memory configuration.
  • 8-Channel: Provides immense memory bandwidth, which is critical for CPU-intensive tasks and ensuring the processor is not bottlenecked.
  • DDR5: Offers higher speeds, better bandwidth, and improved power efficiency compared to DDR4.
  • RDIMM/MRDIMM: Supports Registered DIMMs (standard for servers) and the newer Multiplexer Rank DIMMs, which allow for very high memory capacities (potentially several terabytes).

3. Expansion Slots:

• 5 x PCIe Gen5 x16/x8 Slots: This is the standout feature for expansion.
  • PCIe Gen5: Doubles the bandwidth of PCIe 4.0, allowing for the fastest NVMe SSDs, GPUs, and network/accelerator cards to run at their full potential.
  • Flexible Configuration: The slots can physically be x16 in size but may electrically run at x16 or x8 speeds, depending on the CPU's lane allocation and how they are populated.

4. Storage Connectivity:

• 3 x SlimSAS 4i connectors: These are versatile connectors.
  • SATA Interface: Each SlimSAS 4i port can be split (via a cable) into 4 individual SATA ports. This means the board natively supports up to 12 SATA drives, making it an excellent choice for a storage server or NAS.
• 2 x M.2 Slots (PCIe Gen5 x2):
  • These are ideal for boot drives or high-speed cache drives. The Gen5 x2 interface offers bandwidth equivalent to PCIe 4.0 x4, providing very fast storage for the operating system and applications.

5. Network:

• 2 x 1Gb/s LAN ports (Intel I210-AT):
  • This is a standard, reliable server-grade gigabit Ethernet controller. For a board of this caliber, this is a basic offering. Most users will add a PCIe card for 10GbE, 25GbE, or faster networking to match the system's high-performance potential.

6. Unique Feature:

• Dual ROM Architecture: This feature houses two BIOS chips.
  • Benefits: Provides redundancy. If the primary BIOS becomes corrupted during an update or due to a failure, the system can boot from the backup BIOS. This is a critical feature for servers that require high availability and remote management.

Target Use Cases

This motherboard is perfectly suited for:

1. Dense Storage Server / NAS: With support for 12+ SATA drives (via the SlimSAS connectors) and 2 M.2 slots, it's a powerhouse for building a high-capacity, high-performance storage server.
2. AI / Machine Learning Inference: The PCIe Gen5 slots can handle the latest GPUs or AI accelerator cards, and the CPU's AMX technology boosts AI inference performance.
3. Virtualization Host: The high core count from a Xeon 6700-series CPU, massive memory capacity, and plentiful PCIe lanes make it ideal for running multiple virtual machines.
4. High-Performance Computing (HPC) & Rendering: The combination of a powerful CPU, 8-channel DDR5 memory, and PCIe Gen5 for fast data movement is perfect for scientific computing, simulation, and rendering farms.
5. Data Center & Cloud Services: Its reliability features (Dual ROM) and performance make it suitable for general-purpose data center servers.

Summary: Strengths & Considerations

Strengths:

• Exceptional I/O Bandwidth: PCIe 5.0 and 8-channel DDR5 are state-of-the-art.
• Massive Storage Potential: Native support for 12 SATA devices is a major advantage for storage-centric builds.
• Powerful Single-Socket Performance: Offers a great performance-per-dollar and performance-per-watt ratio for many workloads.
• High Reliability: Server-grade components and Dual ROM architecture.

Considerations:

• Integrated Networking is Basic: The 1GbE ports will be a bottleneck; a separate NIC card is almost a necessity.
• Cost: The motherboard, compatible Xeon CPUs, and DDR5 RDIMM memory are significantly more expensive than consumer-grade components.
• Power Consumption: High-performance server components consume more power and require robust cooling and a high-quality PSU.

Conclusion:

The Gigabyte MS04-CE0 (Part Number: MS04-CE0) is a specialized, no-compromise motherboard for professionals and enterprises that need the latest I/O technology (PCIe 5.0, DDR5) in a flexible, single-socket platform. It excels in storage-heavy and expansion-heavy applications where its vast number of SATA ports and PCIe slots can be fully utilized.
