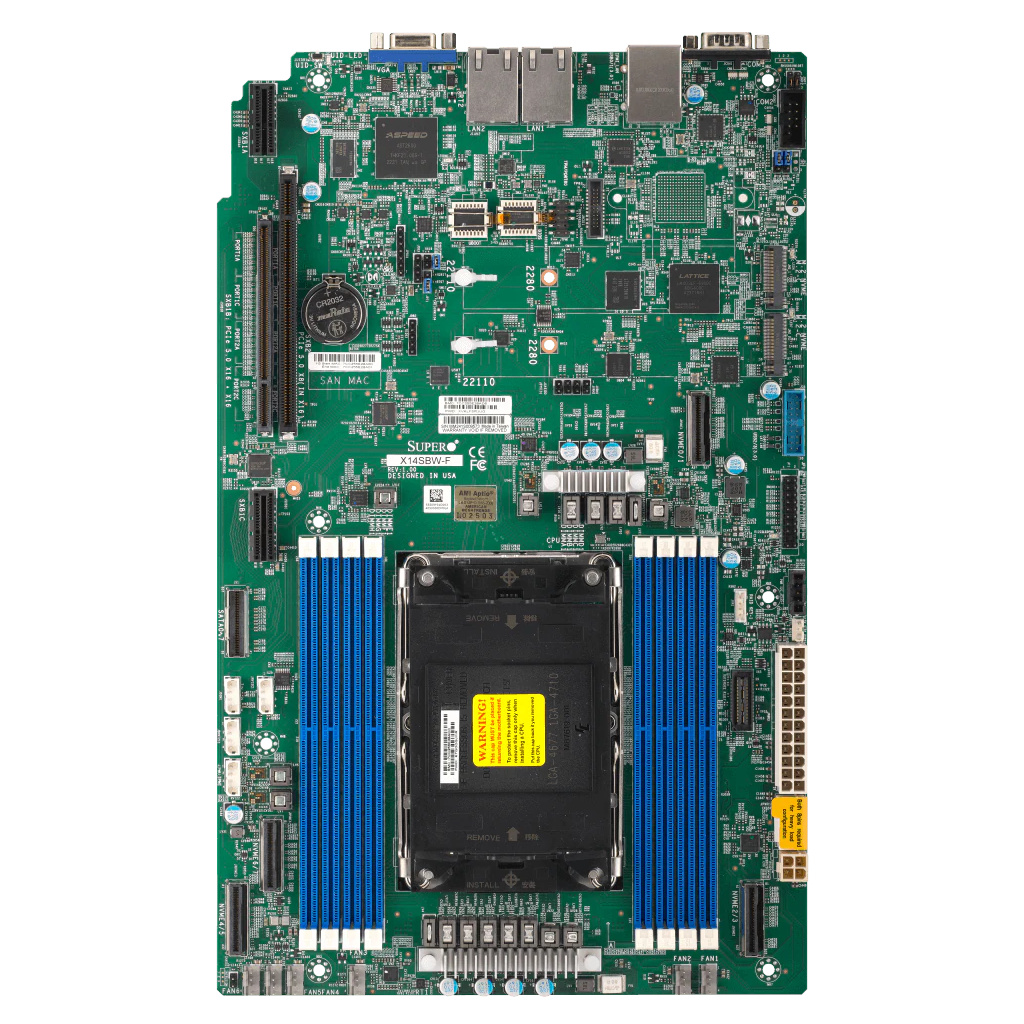

Supermicro MBD-X14SBW-F-B Proprietary WIO Motherboard
Form Factor: Proprietary WIO
Dimension: 8" x 13" (20.32cm x 33.02cm)
CPU: Single Socket E2 (LGA-4710)
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Memory: 8 DIMM Slots
Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only)
DIMM Sizes:
MRDIMM (P-core only):32GB, 64GB
RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB
3DS RDIMM:256GB
Memory Voltage:1.1V
Chipset: System on Chip
SATA: 8 SATA (6Gbps) via ASMediaASM1164
IPMI: ASPEED AST2600 BMC
Network Controller:Dual LAN with 1GbE with Intel® I210
LAN:
2 RJ45 1 GbE LAN port(s)
1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB:
2 USB 3.2 Gen1 port(s) (Header)
2 USB 3.2 Gen1 port(s) (Rear)
Video:1 VGA D-Sub Connector port(s)
Serial:
1 COM port(s) (header)
1 COM port(s) (rear)
TPM:
1 TPM header
1 TPM 2.0 onboard
PCI-Express (PCIe) Configuration:
1 PCIe 5.0 x8 Right Riser slot
1 PCIe 5.0 x32 Left Riser slot
4 PCIe 5.0 x8 via MCIO Connector slots
M2: 2 M.2 PCIe 5.0 x2 slots (M-key 2280/22110)
