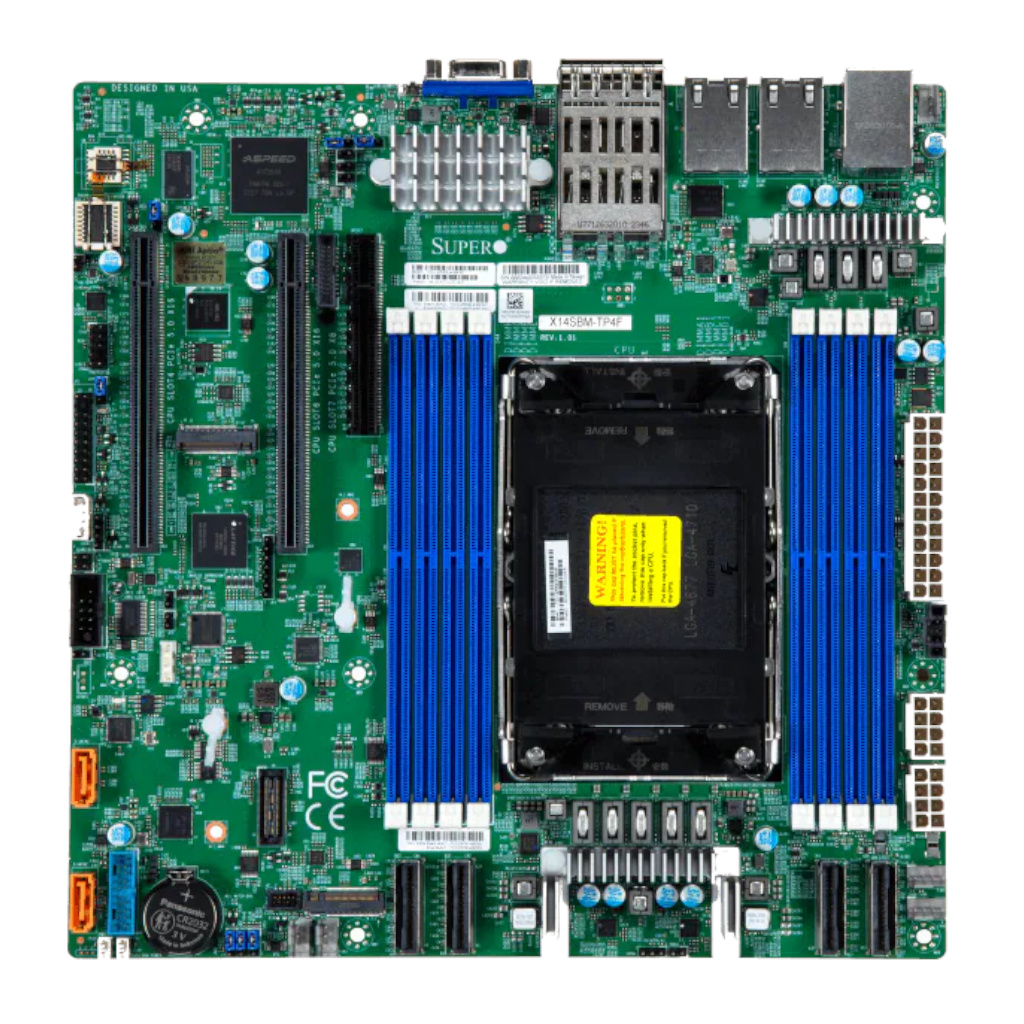

Supermicro MBD-X14SBM-TP4F-B Micro-ATX Motherboard
Form Factor: Micro-ATX
Dimension: 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU: Single Socket E2 (LGA-4710)
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count: Up to 144C
Memory: 8 DIMM Slots
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only)
DIMM Sizes:
MRDIMM (P-core only):32GB, 64GB
RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB
3DS RDIMM:256GB
Memory Voltage: 1.1V
Chipset: System on Chip
SATA: 2 SATA (6Gbps) via ASMediaASM1061
IPMI: ASPEED AST2600 BMC
Network Controller: Quad LAN with 10GBase-T and 10G SFP+ with Intel® X710-TM4
LAN:
2 RJ45 10 GbE LAN port(s)
1 RJ45 1 GbE Dedicated IPMI LAN port(s)
2 SFP+ 10 GbE LAN port(s)
USB:
2 USB 3.2 Gen1 port(s) (Header)
2 USB 3.2 Gen1 port(s) (Rear)
Video: 1 VGA D-Sub Connector port(s)
Serial: 1 COM port(s) (header)
DOM: 2 SATA DOM (Disk on Module) port(s) with power connector support
TPM:
1 TPM header
1 TPM 2.0 onboard
PCI-Express (PCIe) Configuration:
2 PCIe 5.0 x16 slots
1 PCIe 5.0 x8 slot
4 PCIe 5.0 x8 via MCIO Connector slots
M2: 2 M.2 PCIe 5.0 x2 slots (M-key 2280/22110)
