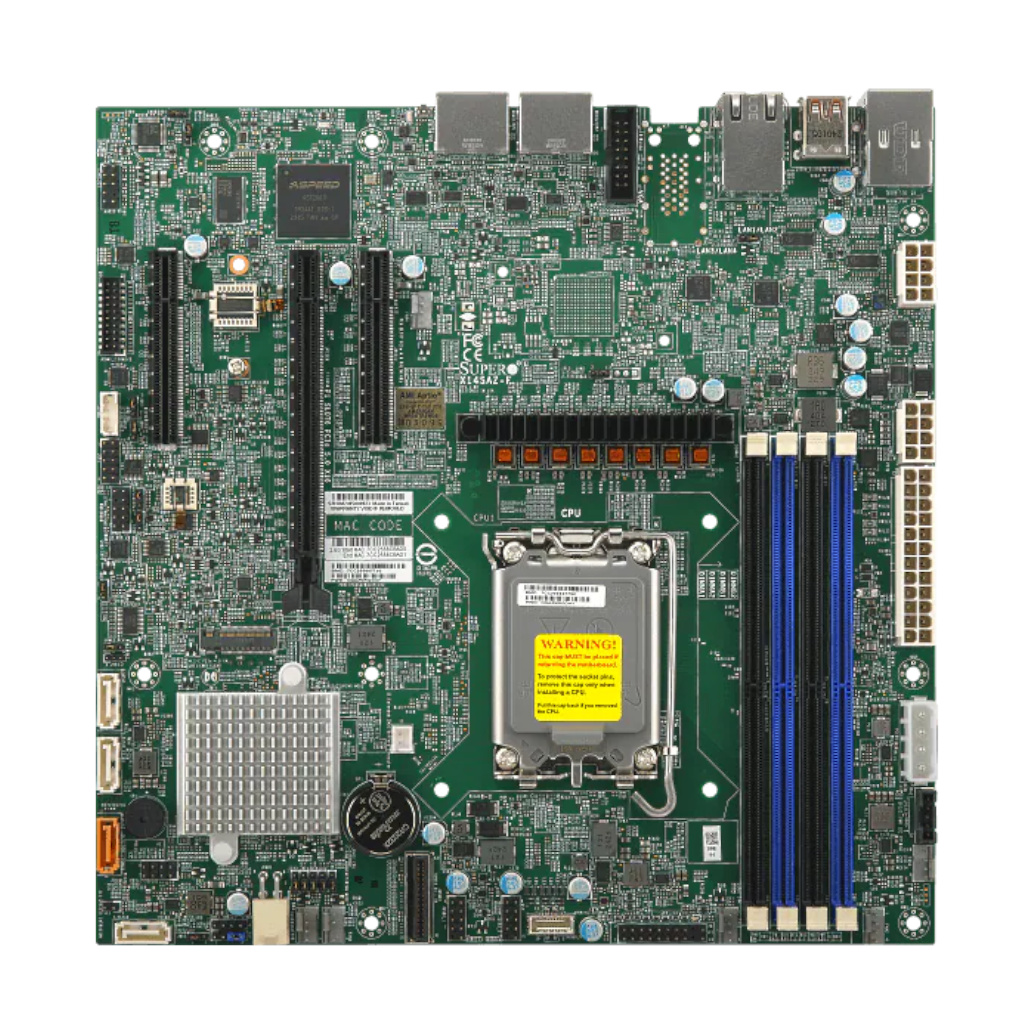

Supermicro MBD-X14SAZ-F-B Micro-ATX Motherboard

Form Factor: Micro-ATX
Dimension: 9.6" x 9.6" (24.38cm x 24.38cm)
CPU:
Single Socket V1 (LGA-1851)
Intel® Core® Ultra 9/7/5 (Series 2) Processors
Core Count: Up to 24C
Memory: 4 DIMM Slots
Max Memory (2DPC): Up to 256GB 5600MT/s ECC/non-ECC DDR5 UDIMM
DIMM Sizes
UDIMM:8GB, 16GB, 24GB, 32GB, 48GB, 64GB
Memory Voltage: 1.1V
Chipset: Intel W880
SATA: 4 SATA (6Gbps) ; RAID 0/1/5/10 support
LAN:
2 RJ45 2.5 GbE LAN port(s) (Intel® I226LM Ethernet Controller)
1 RJ45 1 GbE Dedicated IPMI LAN port(s) (ASPEED AST2600 BMC)
USB:
2 USB 3.2 Gen2 port(s) (Header)
4 USB 2 port(s) (Header)
Video:
1 VGA port(s)
2 HDMI port(s)
2 Display Port port(s)
Serial: 2 COM port(s) (header)
TPM:
1 TPM header
1 TPM 2.0 onboard
PCI-Express (PCIe) Configuration:
1 PCIe 5.0 x16 slot
2 PCIe 4.0 x4 slots
1 PCIe 4.0 x8 via MCIO Connector slot
M2: 1 M.2 PCIe 5.0 x4 slot (M-key 2280/22110)
