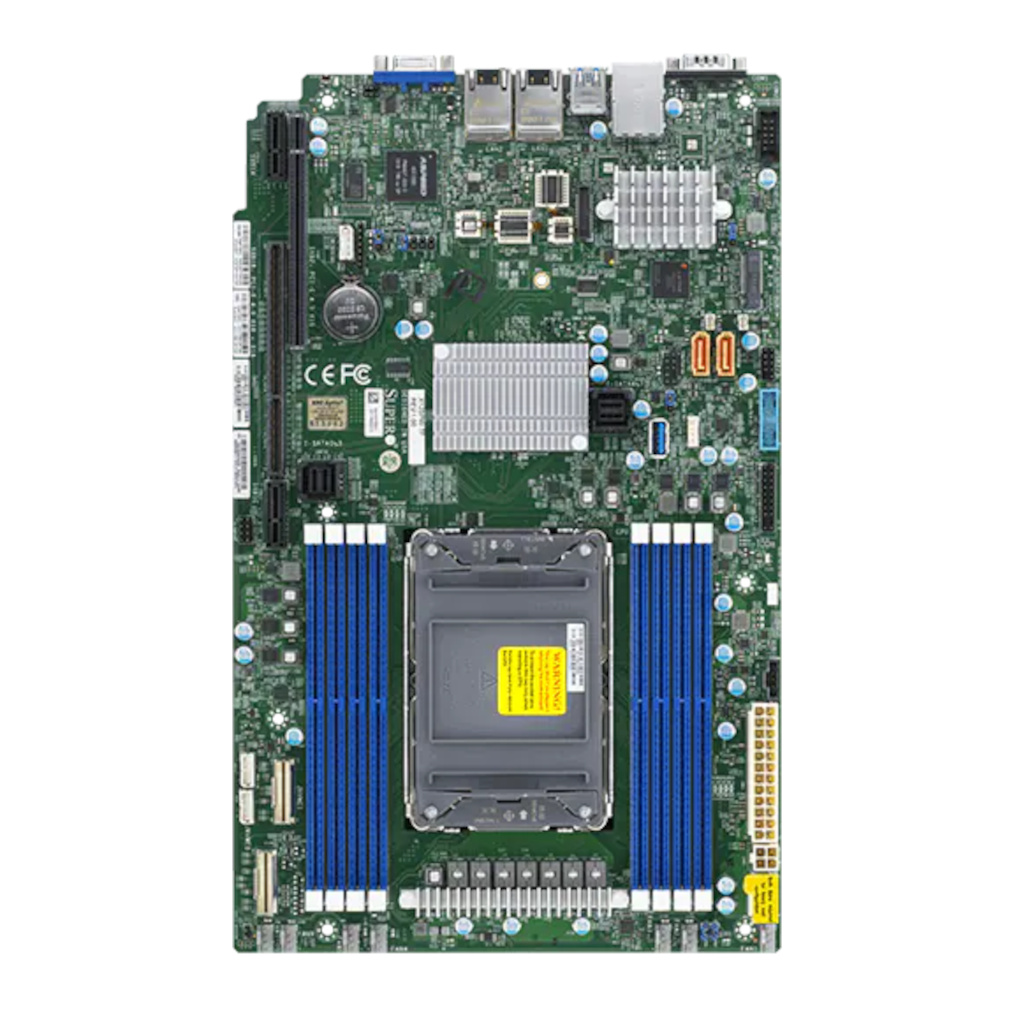

Supermicro MBD-X12SPW-TF-B Proprietary WIO Motherboard
Form Factor: Proprietary WIO
Dimension: 8" x 13" (20.32cm x 33.02cm)
CPU: 3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core: Up to 40 cores
Memory Capacity: 8 DIMM slots
Up to 2TB Intel® Optane™ Persistent Memory 200 Series
Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type: ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes:
LRDIMM 3DS: 128GB, 256GB
LRDIMM: 64GB, 128GB
RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage: 1.2V
Chipset: Intel® C621A
SATA: Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI: ASPEED AST2600 BMC
Graphics: 1 ASPEED AST2600 BMC port(s)
Network Controllers: Dual LAN with 10GBase-T with Intel® X550
Input / Output SATA: 10 SATA3 (6Gbps) port(s)
LAN: 2 RJ45 10GBase-T ports
Video Output: 1 VGA port(s)
Serial Port:
1 COM
1 COM
DOM: 2 SATA DOM (Disk on Module) power connector support
TPM: 1 TPM Header
PCIe:
1 PCIe 4.0 x16 Right Riser Slot,
1 PCIe 4.0 x32 Left Riser Slot,
2 PCIe 4.0 x8 SlimSAS connector
M.2:
M.2 Interface: PCIe 3.0 x4; SATA
Form Factor: 2280, 22110
Key: M-Key
