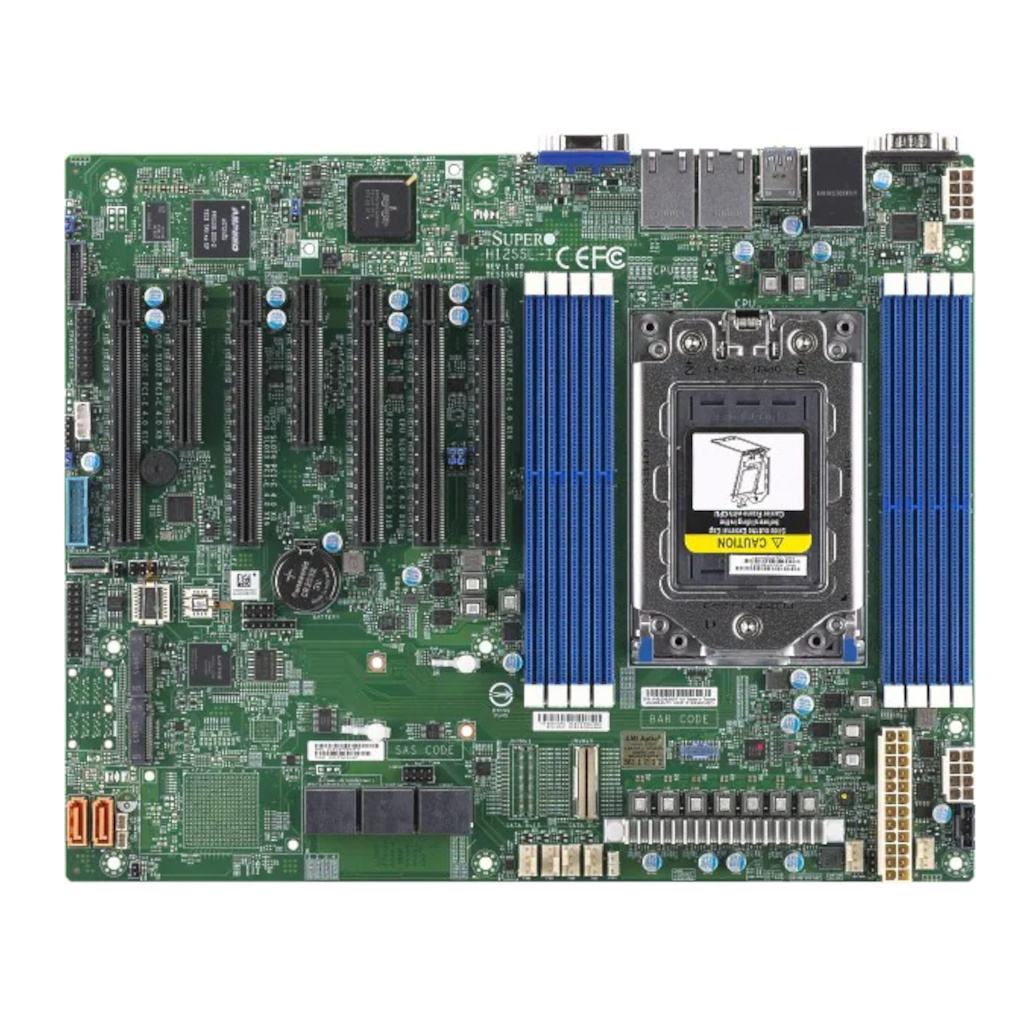

Supermicro H12SSL-I Motherboard
Form Factor: ATX
Dimensions: 12" x 9.6" (30.5cm x 24.4cm)
CPU: Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Socket SP3
Cores: Up to 64 Cores
Chipset: System on Chip
Memory Capacity: 8 DIMM slots
Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus
Memory Type: DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage: 1.2V
On-Board Devices
SATA: SATA3 (6 Gbps)
IPMI: Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers: Dual gigabit LAN via Broadcom BCM5720
1 Realtek RTL8211F PHY (dedicated IPMI)
VGA: ASPEED AST2500 BMC
Input / Output
SATA: 8 SATA3 (6 Gbps) ports
SATA/NVMe Hybrid: 8 SATA3 or 2 NVMe via single SlimSAS x8
LAN: 2 RJ45 Gigabit Ethernet LAN ports | 1 RJ45 Dedicated IPMI LAN port
USB: 6 USB 3.0 ports | (4 rear + 2 via header)
VGA: 1 VGA port
Others:
- 1 COM port (rear)
- 2 SATA DOM power connectors
- 1 TPM 2.0 header
PCI-Express: 5 PCI-E 4.0 x16 | 2 PCI-E 4.0 x8
M.2:
Interface: 2 PCI-E 4.0 x4
Form factor: 2280, 22110
Key: M-key
