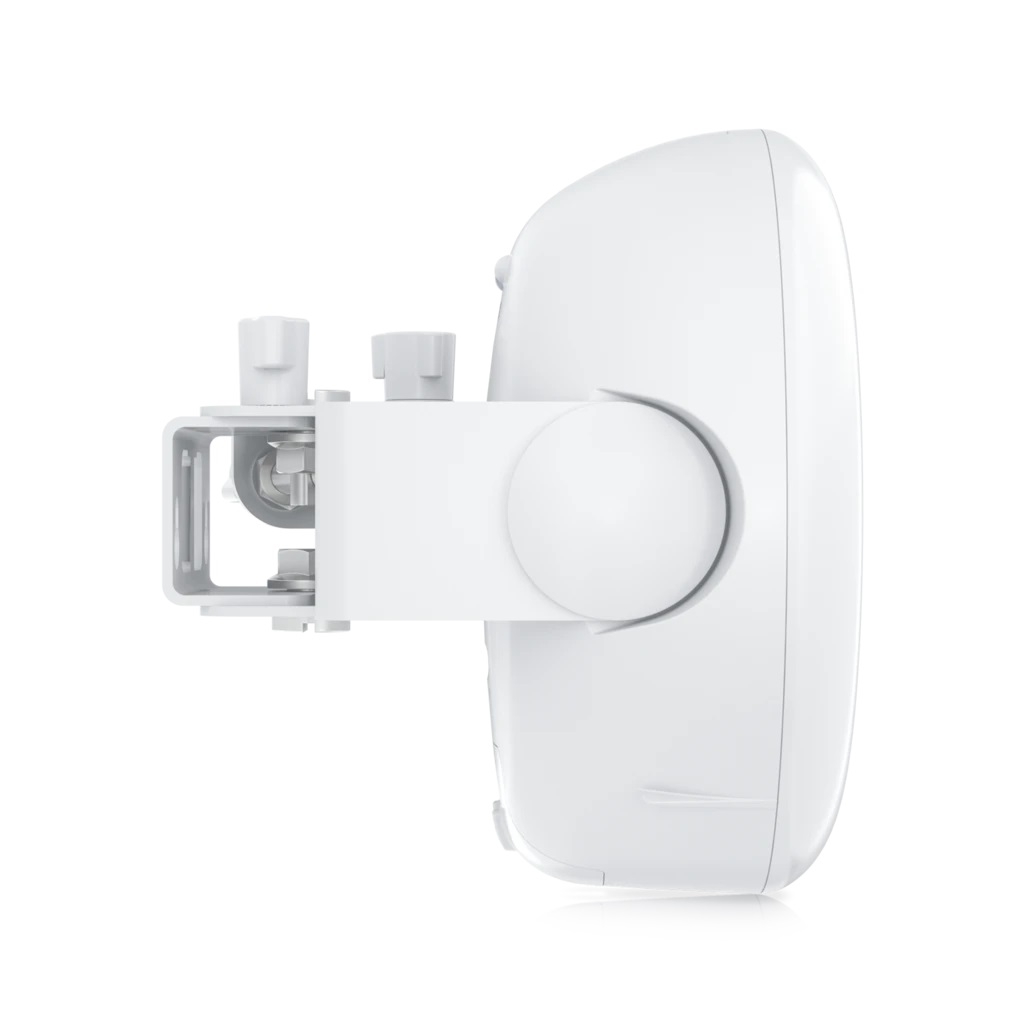

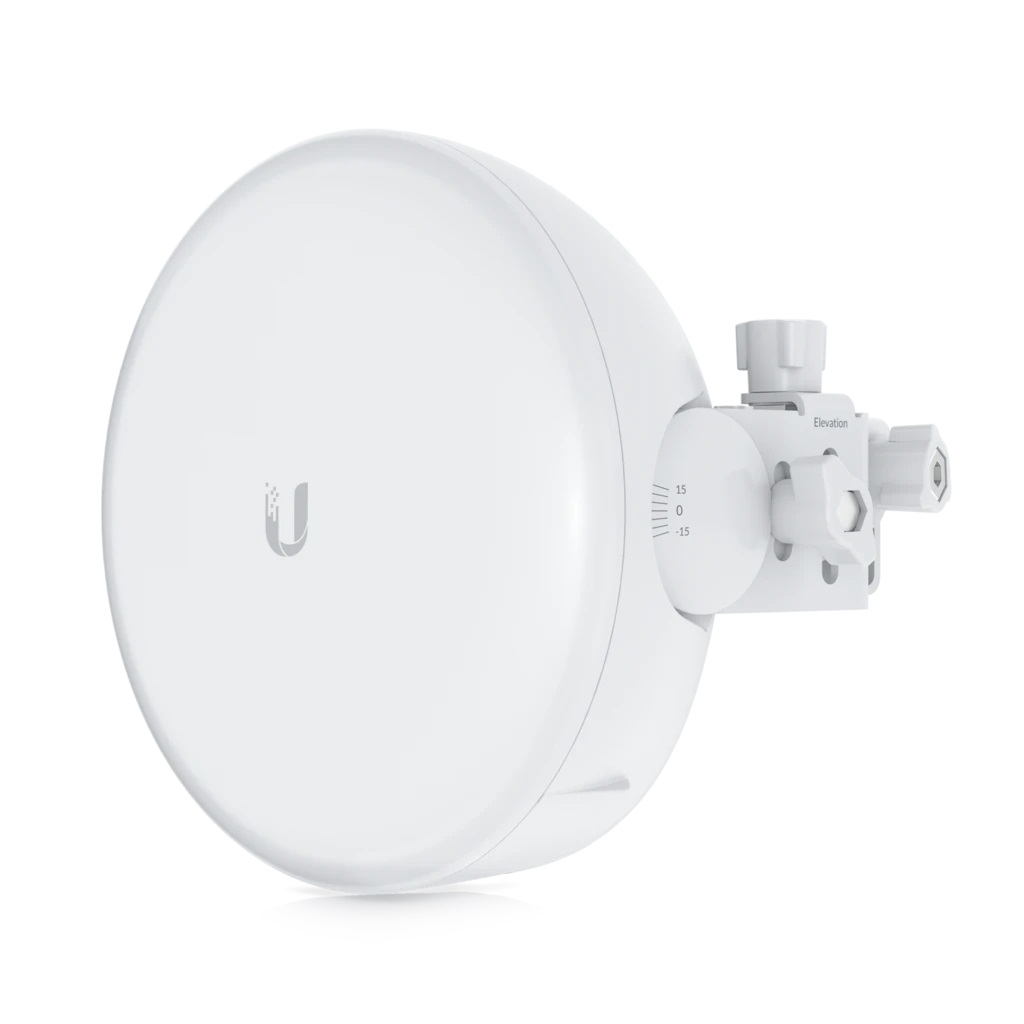

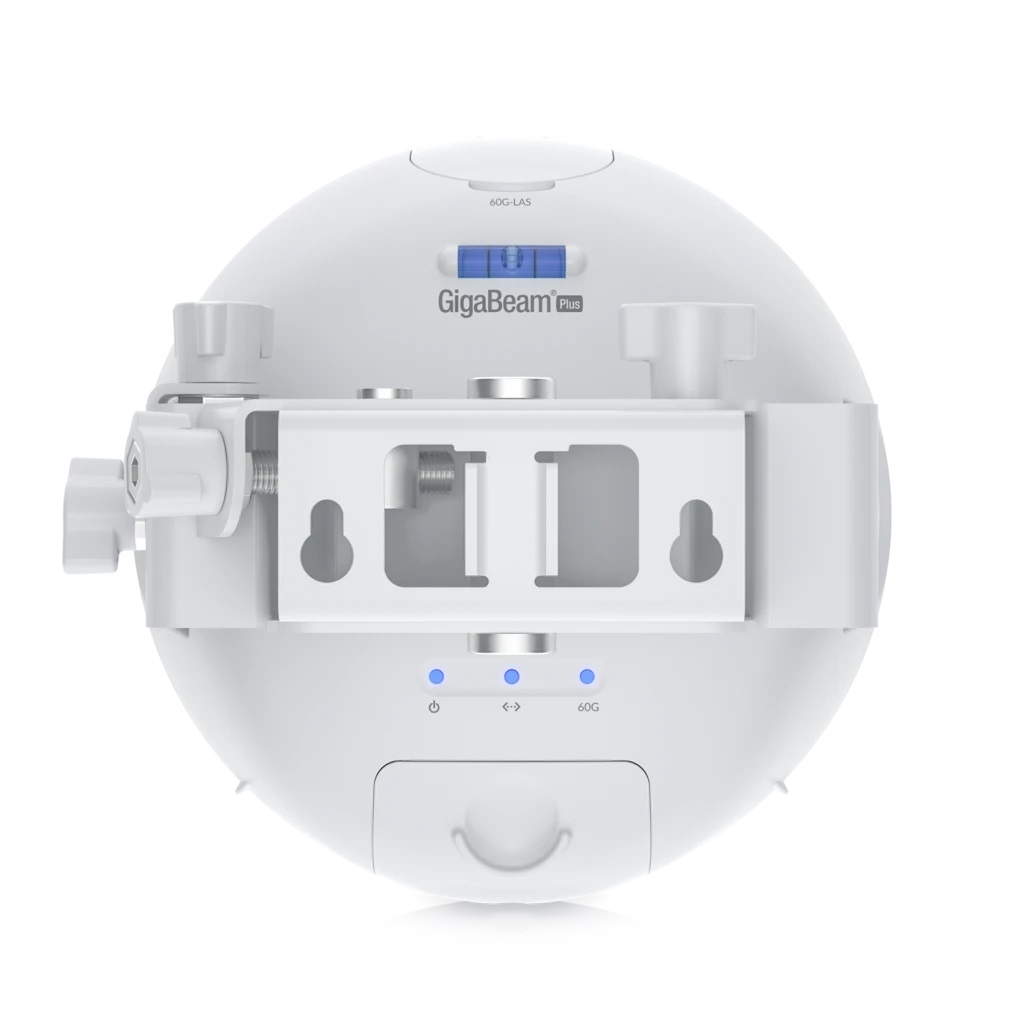

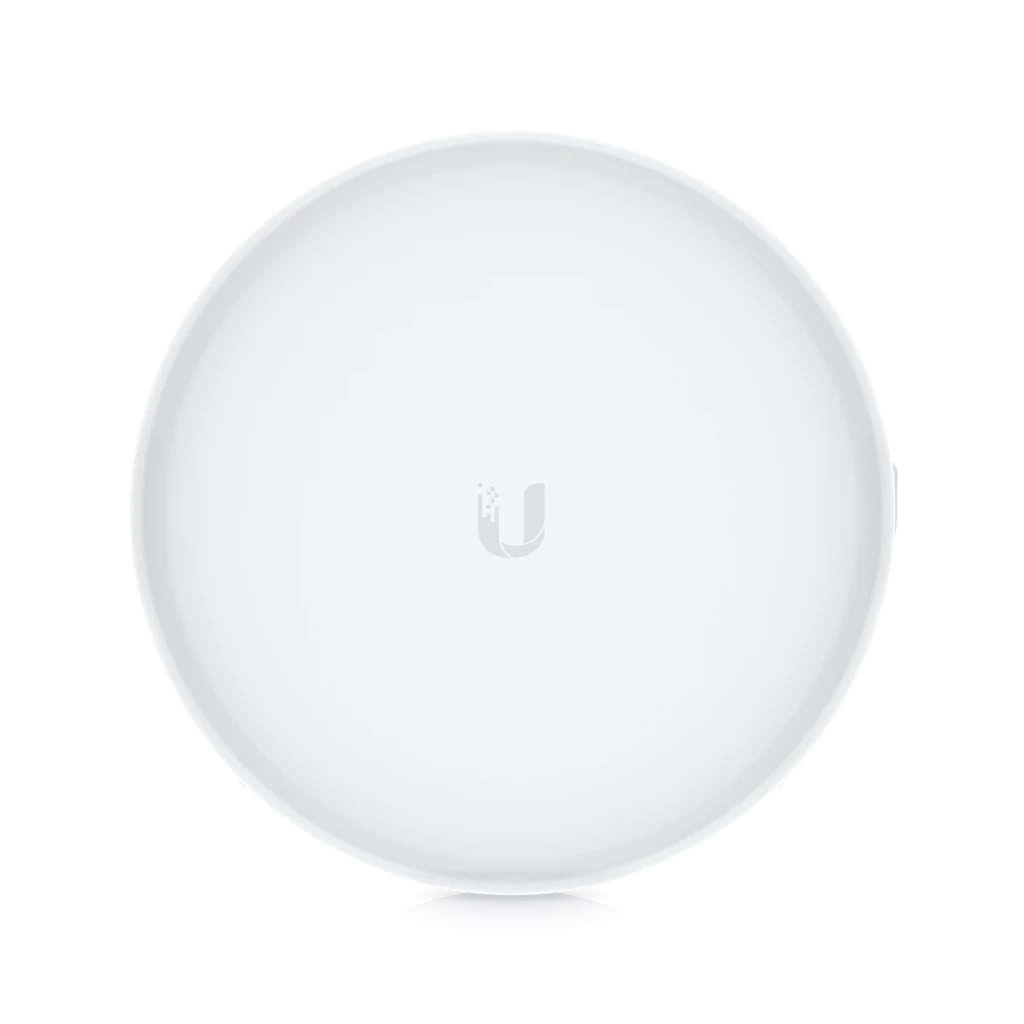

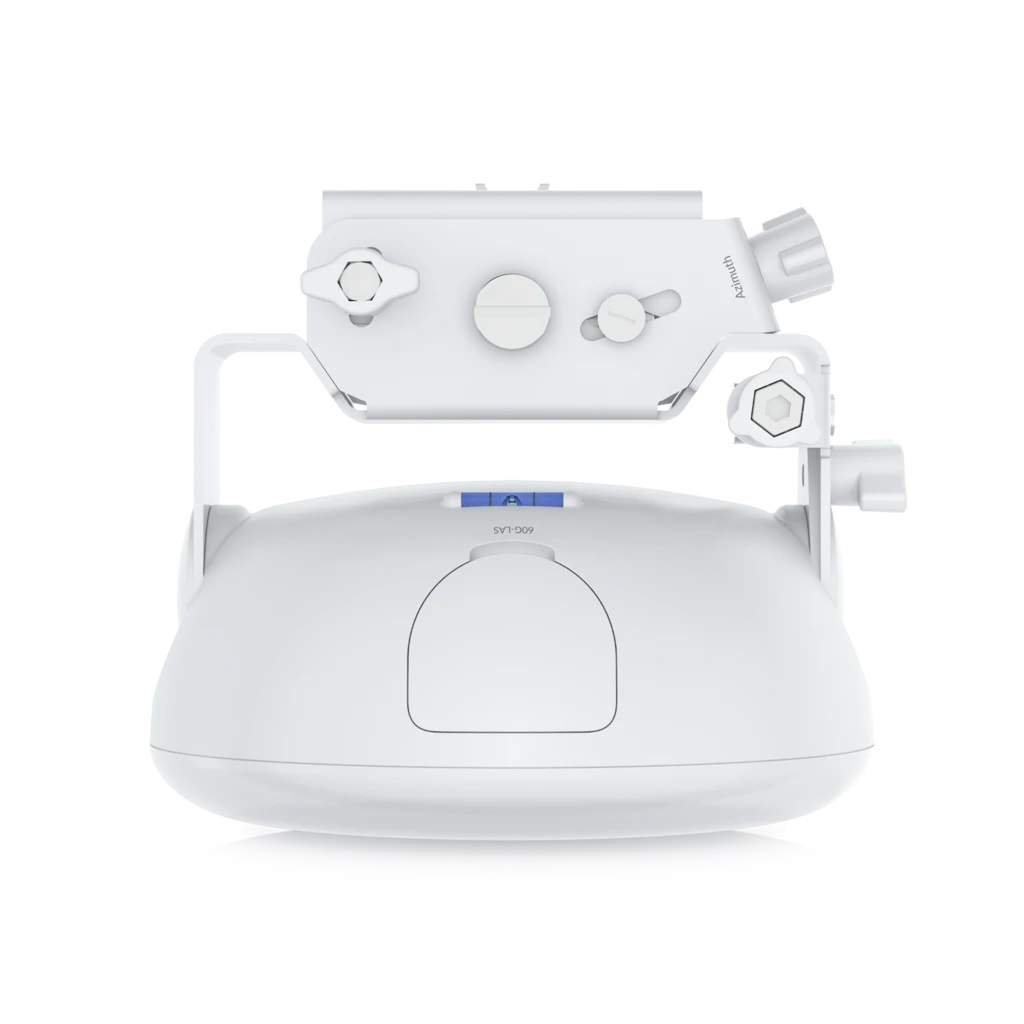

Ubiquiti airMAX GigaBeam Plus 60 GHz Radio
Wind loading 50 N at 200 km/h (11.24 lbf at 125 mph)
Processor Quad-Core ARM® Cortex® A7
Memory 256 MB DDR3
Networking interface 10/100/1,000 Mbps RJ45 port
Management interfaces Ethernet
Max. power consumption 11W
Power method Passive PoE (Pairs 4, 5+; 7, 8-)
Power supply 24V DC, 0.5A Gigabit PoE adapter
Supported voltage range 22—26V DC
ESD/EMP protection Air/contact: ± 24kV
Operating temperature -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Operating frequency* 57,000 - 66,000 MHz (Dependent on regional regulations)
Channel bandwidth 2160 MHz
Operating channels 58320, 60480, 62640, 64800 MHz
Beamwidth Azimuth: 2° (-3 dB) / 3° (-6 dB)
Elevation: 2° (-3 dB) / 3° (-6 dB)
*The antenna is only vertically polarized.
Bluetooth 2400 - 2483.5 MHz
Electrical downtilt 0°
