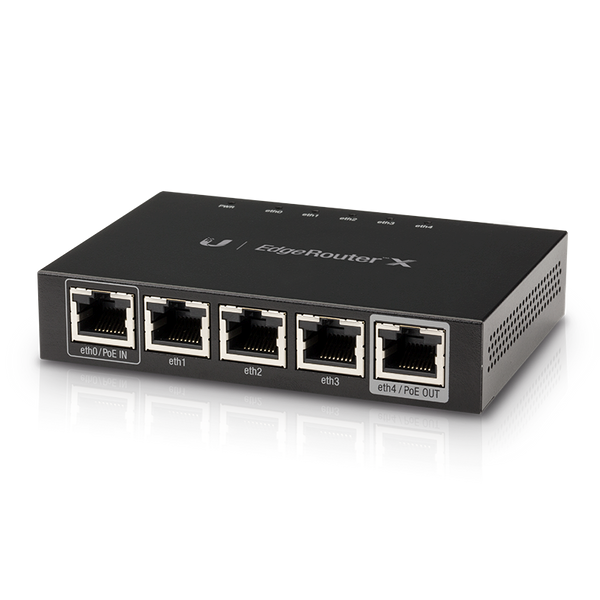

Ubiquiti EdgeRouter X
• (5) Gigabit RJ45 ports
• Passive PoE passthrough option*
• Power via 24V passive PoE or power adapter
• Ports configurable for line-rate, Layer-2 switching
• 260 kpps for 64-byte packets
• 1 Gbps for 1518-byte packets
Dimensions 110 x 75 x 22 mm (4.33 x 2.95 x 0.87")
Weight 175 g (6.17 oz)
Max. Power Consumption 5W
Power Input 12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE
Power Supply External AC/DC Adapter
Supported Voltage Range 9 to 26VDC
Button Reset
LED Power, Ethernet 0-4
Processor Dual-Core 880 MHz, MIPS1004Kc
System Memory 256 MB DDR3 RAM
Code Storage 256 MB NAND
Certifications CE, FCC, IC
Wall-Mount Yes
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
EdgeRouter X
Gigabit router with advanced network management and security features.
Features:
(1) GbE, 24V passive PoE RJ45 input
(3) GbE RJ45 ports
(1) GbE PoE passthrough output*
*Requires 24V passive PoE or a 24V/12W power adapter
