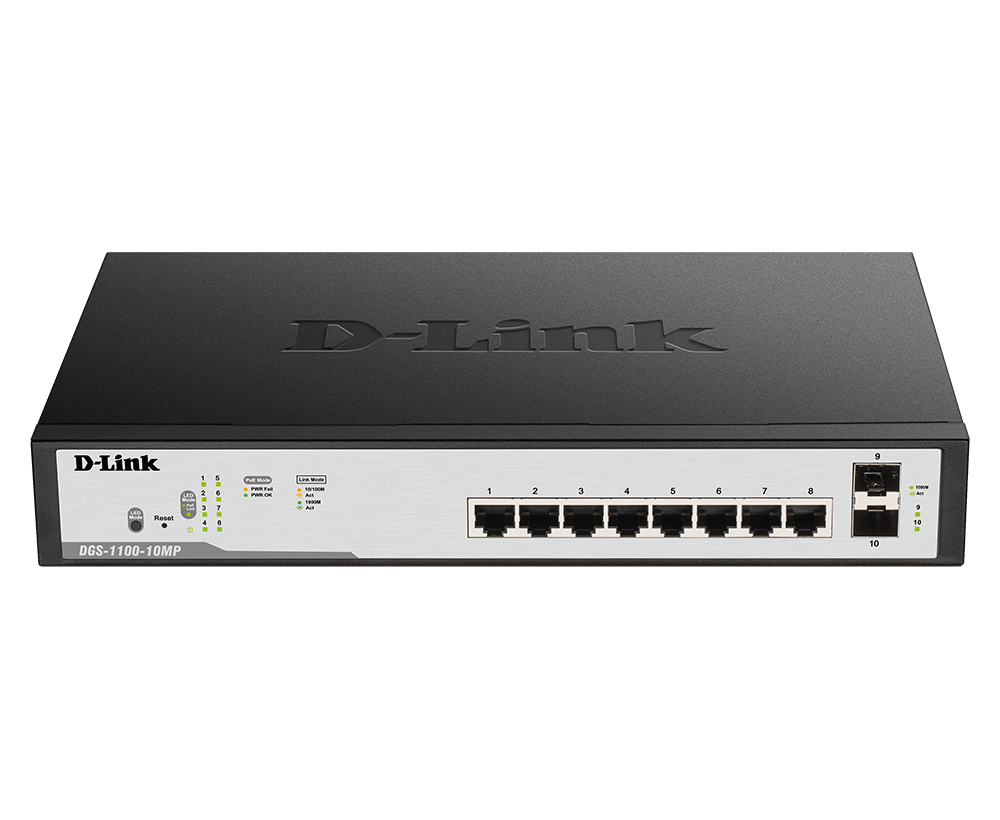

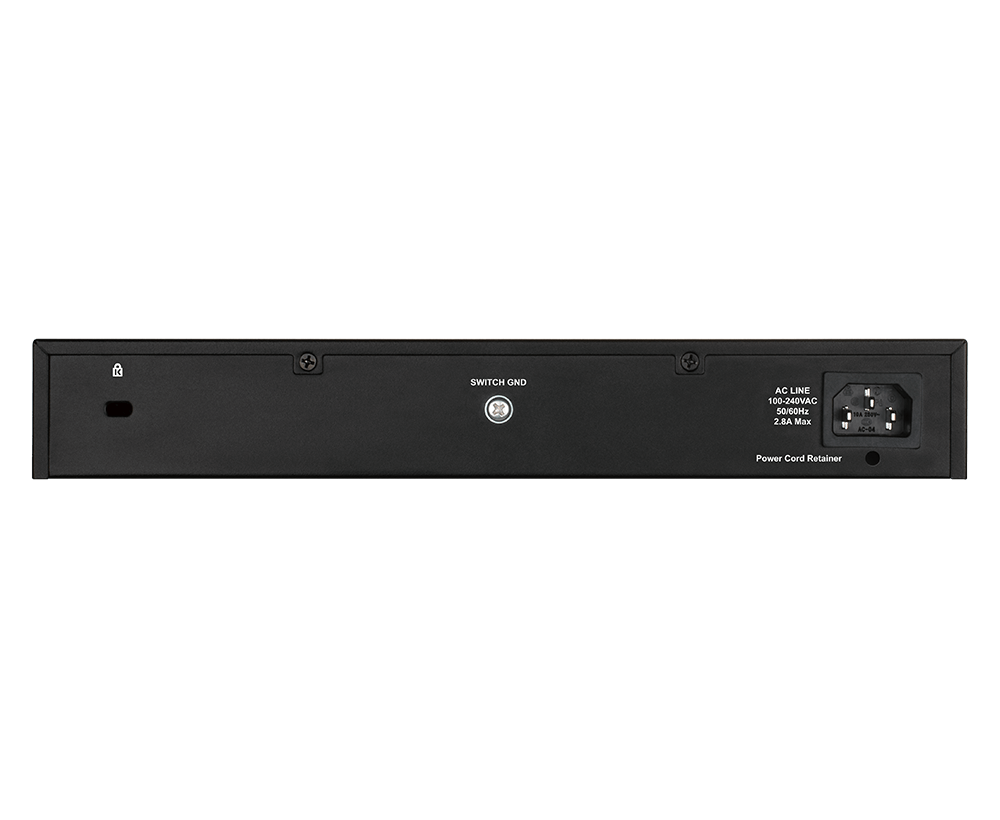

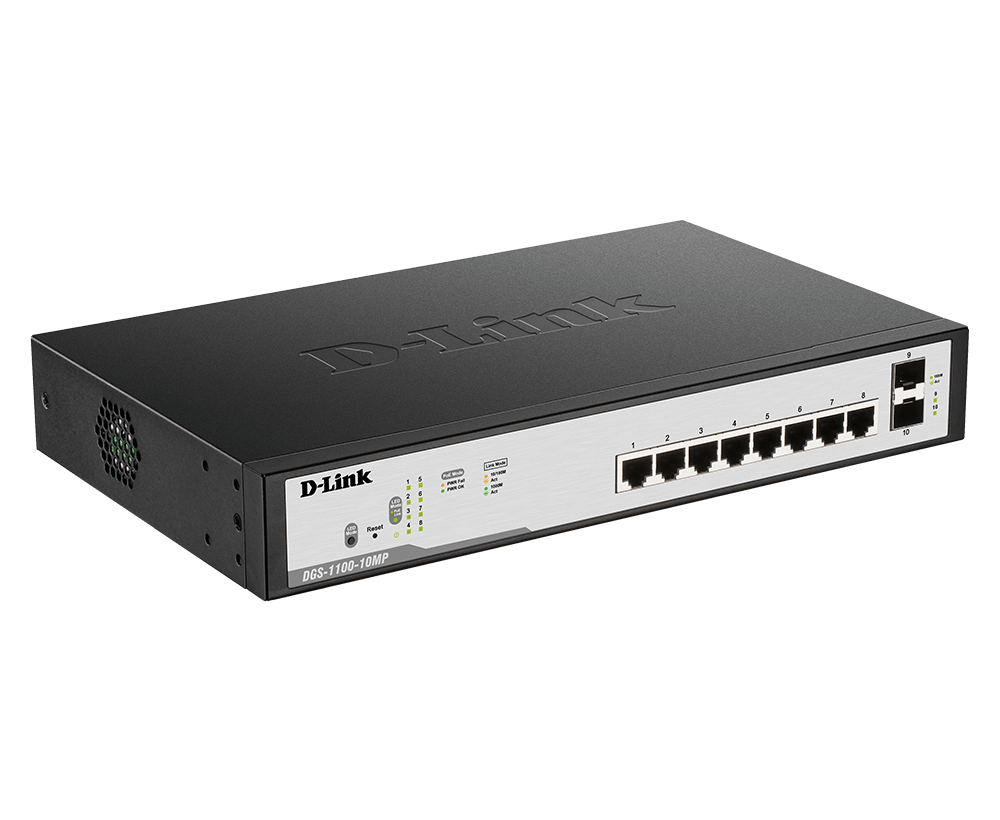

D-Link 10-Port Gigabit PoE Smart Managed Switch
1000Base-T PoE Interface: 8
1000M SFP Interface: 2
Auto MDI/MDIX: Yes
10/100/1000BASE-T PoE ports: 8
SFP ports: 2
Switch Capacity: 20 Gbps
Max. Packet Forwarding Rate: 14.88 Mpps
Power Input: AC: 100-240V
Comply with RoHS 6: Yes
Energy Efficiency Ethernet (EEE): Yes
Power Saving By Link Status: Yes
Power Saving By LED Shut-Off: Yes
Power Saving By Port Shut-Off: Yes
Power Saving By System Hibernation: Yes
Time-based PoE: Yes
Maximum PoE Budget: 130W
PoE Budget: 130 W (30 W max. per PoE port)
MAC Address Table Size: 8K
802.3x Flow Control: Yes
Head-of-line (HOL) Blocking Prevention: Yes
802.1D Spanning Tree (STP): Yes
802.1w Rapid Spanning Tree (RSTP): Yes
802.1AX Link Aggregation: Yes
802.3ad Link Aggregation: Yes
Link Aggregation Group Per Device: 5
Max Port Per Link Aggregation Group: 8
Port Mirroring: Yes
Jumbo Frame: 10240 Byte
Loopback Detection (LBD): Yes
IGMP Snooping: Yes
Max IGMP Snooping Groups: 64
802.1Q VLAN: Yes
Port-based VLAN: Yes
Voice VLAN: Yes
Asymmetric VLAN: Yes
Auto Surveillance VLAN: Yes(2.0)
Provider Backbone Bridge (PBB): Yes
Number of Queue: 8
Class of Service (CoS): Yes
Time based QoS: Yes
Strict Priority Queue (SPQ): Yes
Weighted Round Robin (WRR): Yes
Deficit Round Robin (DRR): Yes
Port-based Bandwidth Control: Yes
SSL: Yes
Broadcast/Multicast/Unicast Storm Control: Yes
Traffic Segmentation: Yes
D-Link Safeguard Engine: Yes
DoS Attack Prevention: Yes
Cable Diagnostics: Yes
Simple Network Time Protocol (SNTP): Yes
Web-based GUI: Yes
SNMP: Yes
SNMP Trap: Yes
TFTP Client: Yes
System Log: Yes
LLDP: Yes
D-Link Discover Protocol (DDP): Yes
DHCP/BootP Client: Yes
Dual Images: Yes
Ping: Yes
D-Link Network Assistant: Yes
Smart Wizard: Yes
Store-and-Forwarding: Yes
Dimension: 294 x 180x 44 mm
Weight: 1.67 Kg
Operation Temperature: -10-55°C
Storage Temperature: -20-70°C
Operation Humidity: 0%-95% RH
Storage Humidity: 50% ~ 90% RH
Operating Altitude: 2000 m
Maximum Power Consumption: 154 W (PoE on)<br> 10.79 W (PoE off)
Maximum Heat Dissipation: 570.51 BTU/hr
Acoustic: 51.9 dB(A)
MTBF: 376,888 hours
CPU Speed: 400MHz
Flash Memory Size: 32MB
DRAM Size: 28MB DDR3
Packet Buffer Size: 4.1MBytes
FAN: Fan *1
