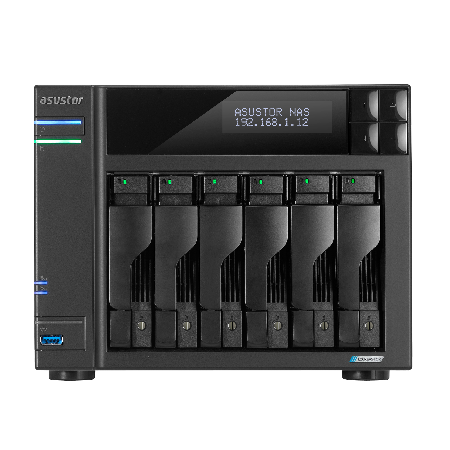

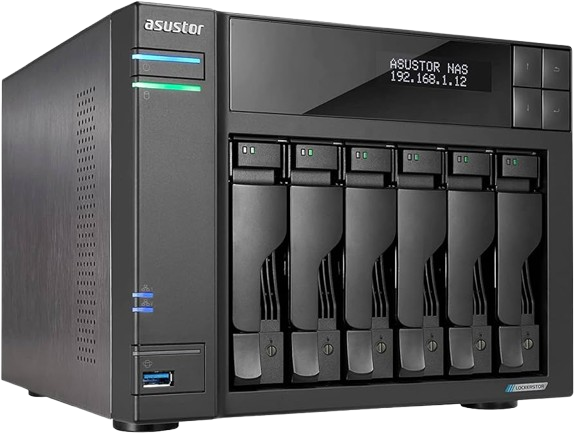

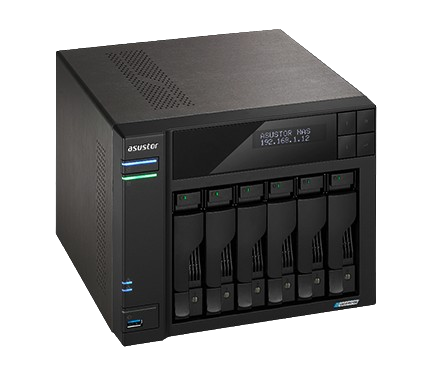

ASUSTOR AS6706T 6-bay Tower NAS Storage
Processor : Quad-Core Intel Celeron N5105 2.0 Ghz - 2.9 Ghz turbo
Memory : 8 GB DDR4-2933 SO-DIMM - Max. 16 GB
M.2 Support : 4 x M.2 NVMe slots - Supports M.2 2280
Drive Bays : 6 x SATA III HDD/SSD - Supports 2½" & 3½" drives
Network : 2 x 2.5-Gigabit - Supports Wake On WAN
Internal Expansion : 1 x PCIe slot for 10GbE cards*
External Device Interface : 2 x USB 3.2 Gen 2 x１ (1x Front ; 1x Rear)
Dimensions (HxWxD) : 185.5(H)x233(W)x230(D) mm
Weight : 4.4kg
Warranty : 3 Years
Power Supply Unit / Adapter : 1 x 250W
Power Consumption : 48.5 W (Operation) ; 27.7 W (Disk Hibernation) ; 0.81 W (Sleep Mode)
Volume Types : Single, JBOD, RAID 0/1/5/6/10, RAID 1/5 + Hot Spare
The No-Compromises 2.5GbE NAS
Enthusiast-grade NAS with two, four or six bays
Quad-Core 10 nm Intel Celeron N5105 CPU - 31% more performance over Gemini Lake
Superfast 2.5-Gigabit Ethernet ports
Flexible PCIe slot for 10GbE NICs or M.2 SSDs
Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.
Uses DDR4-2933 with 40% more performance
USB 3.2 Gen2 ports – 10Gbps speed
Enjoy, download, upload and stream content with 4K transcoding
Increased ventilation for SSDs
Supports Wake on LAN and Wake on WAN
Unleashed Strength
Uses powerful software tools to ensure data is safe and secure
Unleashed Speed
Uses faster hardware for more efficiency
Unleashed Creativity
Maximum creativity without computing constraints
Powered by the Latest 10 nm Intel Jasper Lake Celeron Quad-Core Processors
The Lockerstor Gen2 comes with Intel’s newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
All New Hardware – Same Great Case
ASUSTOR Ultimate 6 bays hybrid storage. Giant space and elastic high speed with M.2 or 10G card.
Four M.2 Slots - Have Your Cake and Eat it Too
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.
Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling..
Tool-Free M.2 SSD Installation
Uses latches instead of screws for easier installation.
2.5 + 2.5 = Extreme Speeds
The Lockerstor Gen2 has two 2.5GbE ports which more than doubles the performance of Gigabit Ethernet devices. But that’s not all, with the recent introduction of support for SMB Multichannel, your NAS will be able to combine the speed of multiple Ethernet ports for speeds way beyond 2.5-Gigabit Ethernet.
Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.
PCIe 3.0 – Doubled SSD Performance
PCIe 3.0 is supported by the Lockerstor Gen2 series of NAS devices which almost double the performance of M.2 SSDs installed in your NAS, ensuring a smoother SSD experience.
USB 3.2 Gen 2 – A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen 1 at up to 10 Gbps.
Removing your Storage Constraints
Edit videos directly on your NAS with Adobe Premiere or Final Cut Pro. Both applications, as well as the full suite of Adobe software are supported on an ASUSTOR NAS ensuring that the SSD on your laptop is no longer a constraint.
