  2. ASUSTOR AS6508T 8-bay Tower NAS Storage
MYR

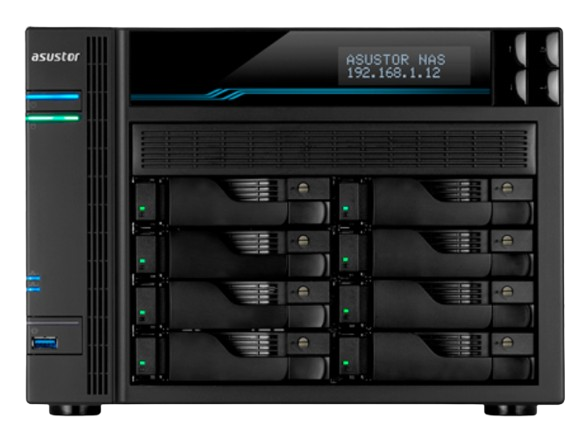

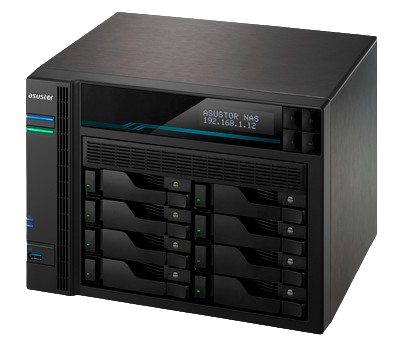

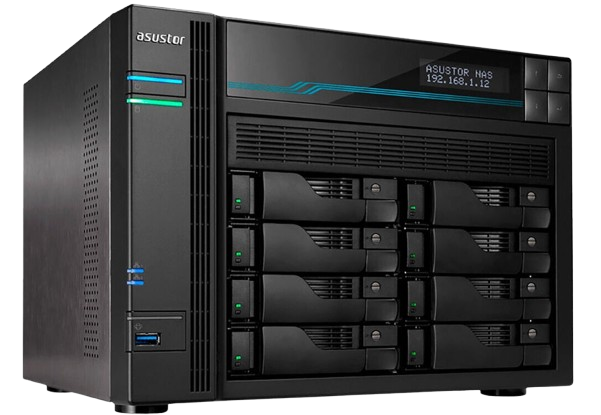

ASUSTOR AS6508T 8-bay Tower NAS Storage

https://server2u.com/web/image/product.template/59435/image_1920?unique=d34f629

Processor : Intel ATOM C3538 2.1GHz Quad-Core Processor
Memory : 8GB SO-DIMM DDR4 (Expandable. max. 64GB, 32GB x2)
M.2 Support : 2 x M.2 PCIE(NvMe) or SATA3 supported M.2 2280, 2260 and 2242
Drive Bays : 8 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
Network : 10 Gigabit Ethernet x 2; 2.5 Gigabit Ethernet x 2
External Device Interface : 2 x USB 3.2 Gen 1 (1 x Front ; 1 x Rear)
Dimensions (HxWxD)  : 215.5(H) x 293(W) x 230(D) mm
Weight : 6.2kg
Warranty : 3 Years
Power Supply Unit / Adapter  : 1 x 250W
Power Consumption :  66.9W (Operation) ; 37.2W (Disk Hibernation) ; ( No Sleep Mode)
Volume Types : Single, JBOD, RAID 0/1/5/6/10, RAID 1/5/6/10 + Hot Spare

Part Number: AS6508T

RM 5,600.00 5600.0 MYR RM 5,600.00

RM 5,600.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    ​

    Shift into overdrive with dual Intel 10GbE, M.2 SSD Cache and 2.5GbE!
    ​
    • Intel Denverton-based Atom C3538 Quad-Core CPU
    • 8GB DDR4-2133 SO-DIMM - 30% faster than DDR3
    • Dual Intel 10-Gigabit Ethernet ports - Supports up to 20 Gbps under Link Aggregation
    • Dual Realtek 2.5-Gigabit Ethernet ports - Supports up to 5 Gbps under Link Aggregation
    • Supports 8x 3½" SATA hard drives and SSDs
    • Dual M.2 NVMe SSD ports for fast caching
    • Supports an extra 144 TB with the AS6004U
    • Thumbscrews for easy M.2 SSD installation
    • Supports Wake on LAN and Wake on WAN
    • Efficient cooling design
    • Best in class three year warranty

    ​


    SSD Cache

    The recently updated ADM features an updated Linux Kernel and additional performance enhancements. The Lockerstor series introduce M.2 PCIe NVMe SSD caching increasing performance.

    1. Lockerstor NVMe SSD caching increases performance by up to 60%.
    2. Lockerstor NVMe SSD caching is faster than if all bays were filled with SATA SSDs while remaining cheaper.

    With dual 10-Gigabit Ethernet, bottlenecks on NVMe SSDs have been lifted, making the Lockerstor one of the fastest NAS devices ever.


    Eight Bays with Flexible M.2 SSD Caching


    The AS6508T is a cost-effective large capacity NAS designed for enterprise environments.The AS6508T supports online capacity expansion, allowing for the flexible purchase of enterprise storage equipment. When your budget and storage requirements are smaller, you can purchase a smaller number of hard disks. Additional disks can be purchased as your storage requirements row. Combined with ASUSTOR’s MyArchive storage technology, this allows you to effectively achieve unlimited storage.


    Powerful and high efficient cooling design


    The Lockerstor utilizes PWM fans with smart speed controls and heatsinks with push-pin mounting to achieve optimal airflow, enhancing stability and maintaining high performance even under high loads.


    The Lockerstor’s improved design features improved heatsinks that are taller than previous models to ensure even more efficient cooling and heat dissipation.

    Easily upgrade memory by opening the chassis.


    The Lockerstor comes with 8 Gigabytes of DDR4 RAM and can be upgraded up to 64GB. DDR4 RAM provides up to 30% greater performance than DDR3 while also lowering energy requirements by 40%.



    24/7 Reliability and Durability

    All ASUSTOR NAS are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests to test durability in extreme conditions. Heatsinks were added to sensitive components to dissipate heat, helping to maintain the longevity of the device.
