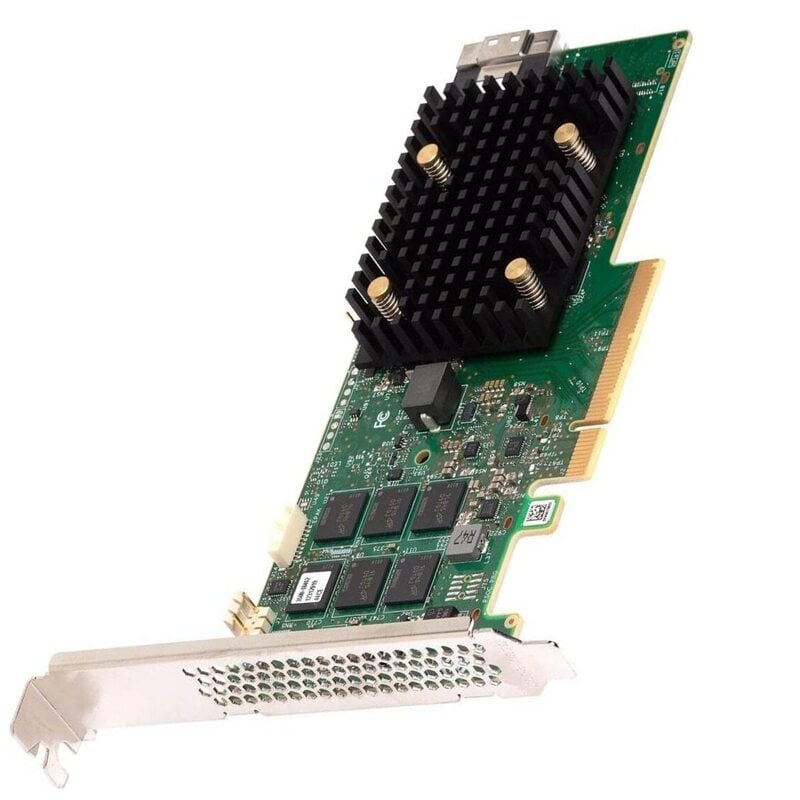

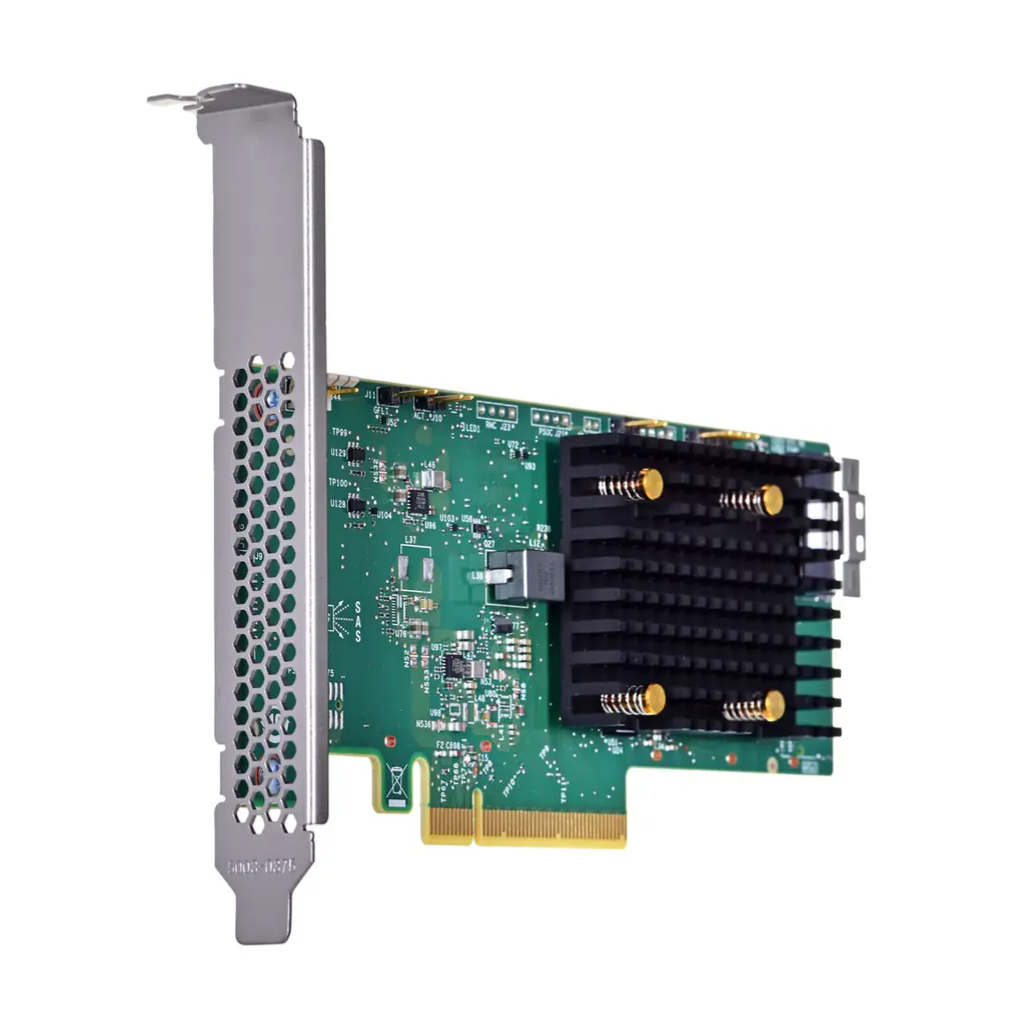

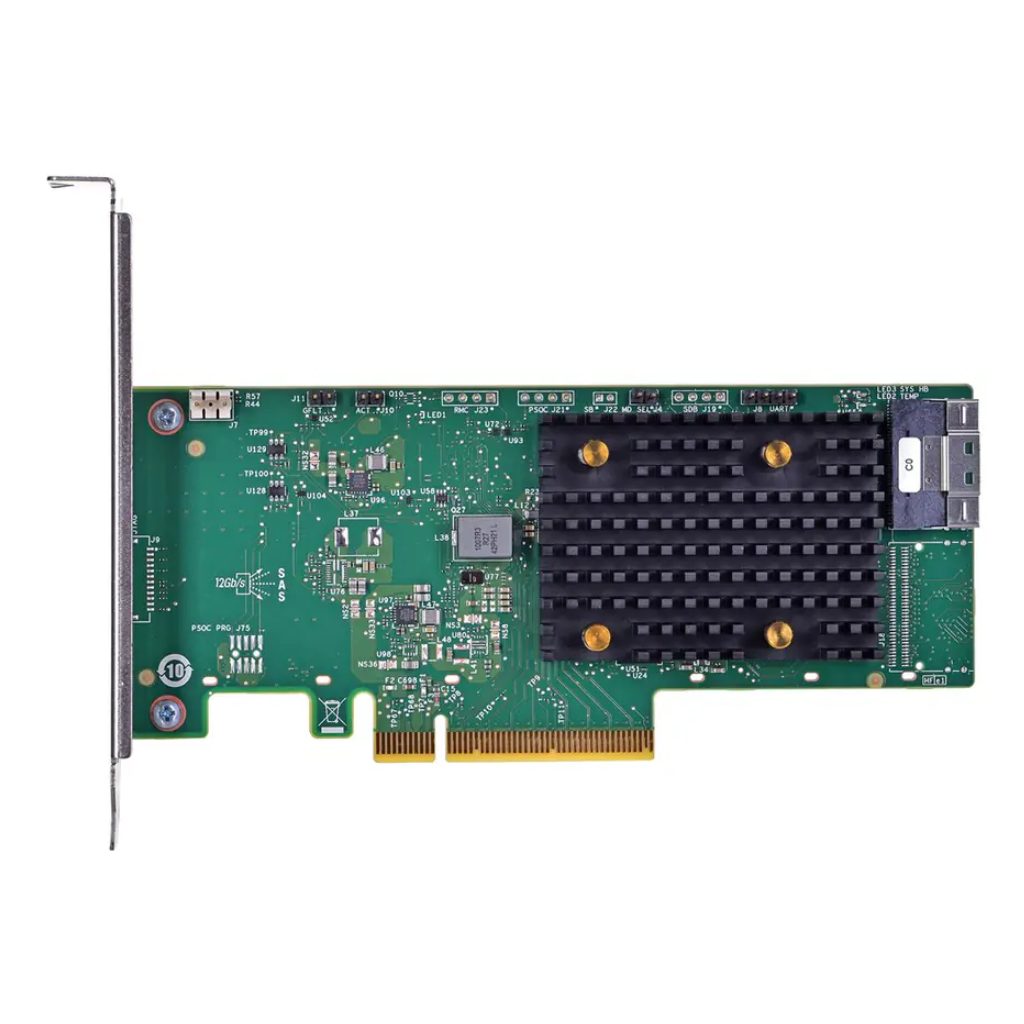

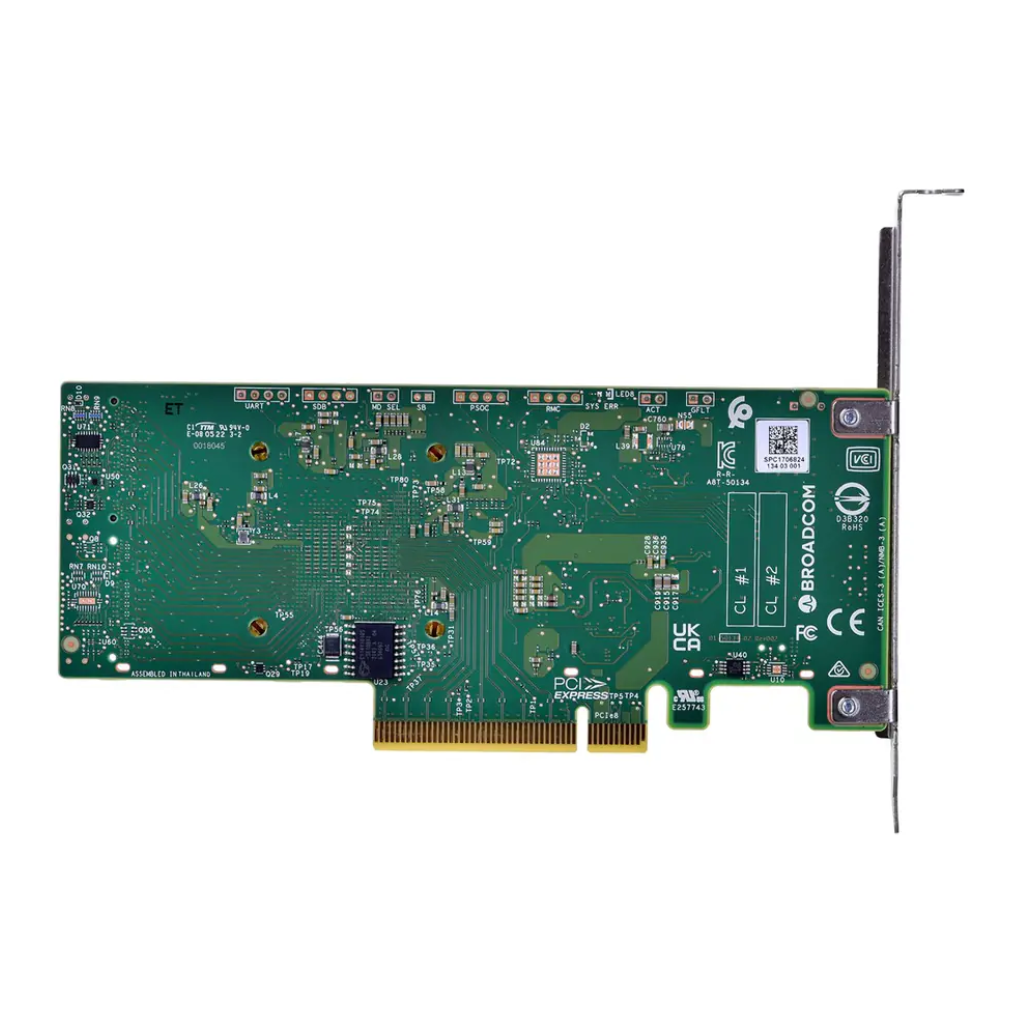

Broadcom MegaRAID 9540-8i 8-Port 12Gb/s SAS/SATA RAID Controller

https://server2u.com/web/image/product.template/59778/image_1920?unique=e786b7d

Broadcom MegaRAID 9540-8i 8-Port 12Gb/s SAS/SATA RAID Controller
Data Transfer Rates:12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported: SAS/SATA: 63, NVMe: 4
Generation: 12 Gb/s
Host Bus Type: x8 lane PCI Express 4.0
I/O Processor / SAS Controller: SAS3808
Internal Connectors: 1 x8 SFF-8654 (SlimSAS)
Internal Ports: 8
Management Software: LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF: >3,000,000 hours at 40° C
Operating Temperature°C: 0°C to 55°C
OS: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions: 155.52 (+/-0.13) mm x 68.77 (+/-0.13) mm
RAID Levels: 0, 00, 1, 10
Typical Power: 6.0W
Warranty: 3 months

Part Number: 9540-8i

RM 1,026.19 1026.19 MYR RM 1,026.19

RM 1,026.19

Not Available For Sale

    This combination does not exist.

    Contact Us

    Overview

    The Broadcom MegaRAID 9540-8i is a high-performance 12Gb/s SAS/SATA RAID controller designed for enterprise servers and storage systems. It delivers reliable RAID protection, low latency, and robust scalability for mission-critical workloads. With PCIe Gen4 support and broad OS compatibility, it is optimized for virtualized, database, and data-intensive environments that require consistent high-speed storage access.


    Key Features & Detailed Analysis

    1. High-Speed Data Transfer
    • Supports 12Gb/s SAS and 16GT/s PCIe Gen4 for NVMe compliance
    • Provides fast data throughput to meet demanding workloads
    • Equipped with 8 internal ports and an x8 PCIe 4.0 host interface
    2. Device Support & RAID Capabilities
    • Supports up to 63 SAS/SATA devices and 4 NVMe devices
    • RAID levels: 0, 00, 1, 10 for flexible data protection and performance
    • Ideal for mixed-use storage deployments
    3. Advanced Controller & Management
    • Uses SAS3808 I/O processor / SAS controller for efficient processing
    • Managed via:
      • LSI Storage Authority (LSA) – GUI-based management
      • StorCLI – Command-line interface for advanced control
      • HII (UEFI interface) – BIOS-level configuration
    4. Reliability & Operational Specs
    • MTBF: >3,000,000 hours at 40°C
    • Operating temperature: 0°C to 55°C
    • Typical power consumption: 6.0W – energy-efficient design
    5. Physical & Integration Details
    • Dimensions: 155.52 mm x 68.77 mm
    • Internal connector: 1 x8 SFF-8654 (SlimSAS)
    • Compact design suitable for modern server chassis
    6. Broad OS Compatibility
    • Supports major enterprise operating systems including Windows Server, VMware ESXi/vSphere, Red Hat, SuSE, Ubuntu, CentOS, Debian, Oracle Linux, Fedora, Citrix XenServer, and FreeBSD
    7. Warranty & Certifications
    • Warranty: 3 months
    • Enterprise-grade hardware meets industry standards for reliable deployment


    Target Use Cases

    1. Enterprise Servers & Storage Arrays
    • Ideal for connecting multiple SAS/SATA drives in high-performance storage systems
    2. Virtualized Environments
    • Supports multiple VMs with fast, low-latency storage access
    3. Database & Transactional Workloads
    • Optimized for SQL, NoSQL, and other I/O-intensive database applications
    4. Backup & Disaster Recovery
    • Provides RAID protection to ensure data integrity and redundancy
    5. Small to Medium Data Centers
    • Suitable for businesses needing scalable, reliable storage expansion


    Summary

    Strengths
    1. High-speed 12Gb/s SAS with PCIe Gen4 support
    2. RAID levels 0, 00, 1, 10 for flexible protection
    3. Supports up to 63 SAS/SATA and 4 NVMe devices
    4. Advanced management tools (LSA, StorCLI, HII)
    5. Reliable with >3M-hour MTBF and low power consumption
    6. Broad OS compatibility for enterprise deployment
    Considerations
    1. NVMe support limited to 4 devices
    2. Warranty is relatively short at 3 months
    3. RAID controller is designed primarily for internal drives (SFF-8654), external expansion may require adapters
    Conclusion

    The Broadcom MegaRAID 9540-8i offers a reliable, high-speed RAID solution for enterprise servers and storage systems. With support for SAS/SATA drives, RAID protection, and PCIe Gen4, it is ideal for virtualization, databases, and data-intensive workloads where performance, reliability, and scalability are critical.
