  3. Lenovo ThinkCentre M70s Gen 5 SFF Desktop (i7-14700.16GB.512GB)
MYR

Lenovo ThinkCentre M70s Gen 5 SFF Desktop (i7-14700.16GB.512GB)

https://server2u.com/web/image/product.template/59366/image_1920?unique=c7e9dc3

Processor: Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB
Graphics: Integrated Intel® UHD Graphics 770
Chipset: Intel Q670 Chipset
Memory: 1x 16GB UDIMM DDR5-4800
Memory Slots: Two DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 64GB DDR5
Storage: 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Optane Memory: None
Storage Support:
Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD
• 3.5" HDD up to 2TB
• 2.5" HDD bay is only for customer self upgrade
• M.2 SSD up to 2TB each
Card Reader: 3-in-1 Card Reader
Optical: None
Audio Chip: High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers: 1Wx1
Power Supply: 260W 90%
Keyboard: USB Calliope Keyboard, Black, English
Mouse: USB Calliope Mouse, Black
Expansion Slots:
One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Two M.2 slots (one for WLAN, one for SSD)"
Form Factor: SFF (8.2L)
Dimensions (WxDxH): 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight: Around 5.3 kg (11.7 lbs)
Ethernet: Integrated 100/1000M
WLAN + Bluetooth: Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2
Front Ports:
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Rear Ports:
4x USB-A (Hi-Speed USB / USB 2.0)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2, DSC)
1x Ethernet (RJ-45)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks:
Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Warranty: Free Upgrade to 3Y Premier Support
Operating System: Windows® 11 Pro, English

Part Number: 12U8002KME

RM 4,760.00 4760.0 MYR RM 4,760.00

RM 4,760.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Lenovo
    Form Factor: Small Form Factor (SFF)
    Processor(s): Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB
    Memory: 16GB (1x16GB)
    Memory Type: UDIMM DDR5-4800
    Hard Disk: 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
    Graphic: Integrated Intel UHD Graphics 730
    Optical: None
    Operating System: Windows® 11 Pro, English
    Wireless: Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2
    Warranty: Free Upgrade to 3Y Premier Support

    SMALL FORM, BIG IMPAC


    Fast, powerful small-form factor desktop PC
     AI-accelerated features to enhance performance
     Up to 14th Gen Intel Core™ processors with Intel vPro® Enterprise
     ThinkShield security solutions to protect your data and your business

    Intelligent Performance With AI Enhancements

    The Lenovo ThinkCentre M70s Gen 5 small form factor (SFF) desktop constantly adapts and learns from your usage patterns to optimize power usage and dynamically allocate resources. No more overheating woes as the AI-driven fan control keeps your device cool, reducing temperature and noise. Plus, the power optimization feature enhances energy efficiency.




    Enhanced Productivity


    The ThinkCentre M70s Gen 5 SFF desktop is a powerhouse of productivity powered by up to 14th Gen Intel® Core™ processor with Intel vPro® Enterprise to accomplish more with less effort. Unlock boundless creativity with integrated Intel® graphics. Plus, this small form factor handles complex data operations with ease thanks to ample memory and storage.


    Unmatched Security

    ​

    Protect your data and business with ThinkShield, our comprehensive suite of security solutions, featuring the discrete Trusted Platform Module (dTPM) to safeguard critical data with encryption. Physical security is reinforced with Kensington Security Slot™, chassis e-locks, and more, offering unparalleled security.

    Multitasking Flexibility

    The ThinkCentre M70s Gen 5 SFF makes multitasking a breeze with multiple ports and expansion slots. Connect your tablets and laptops through Smart Cable. This intelligent feature offers cutting-edge device collaboration through convenient USB-A and USB-C connections, accommodating all your peripherals, including laptops and tablets. Seamlessly share device control, data, and screen projection between devices.



    Redefining Sustainability

    The ThinkCentre M70s desktop PC uses 90% post-industry content (PIC) recycled materials expanded polyethylene (EPE) cushion, 60% post-consumer content (PCC) recycled plastic, 30% ocean-bound plastic (OBP) thermal shell and 30% OBP bag and Forest Stewardship Council® (FSC) certified carton in packaging. The chassis uses 85% PCC acrylonitrile butadiene styrene (ABS)

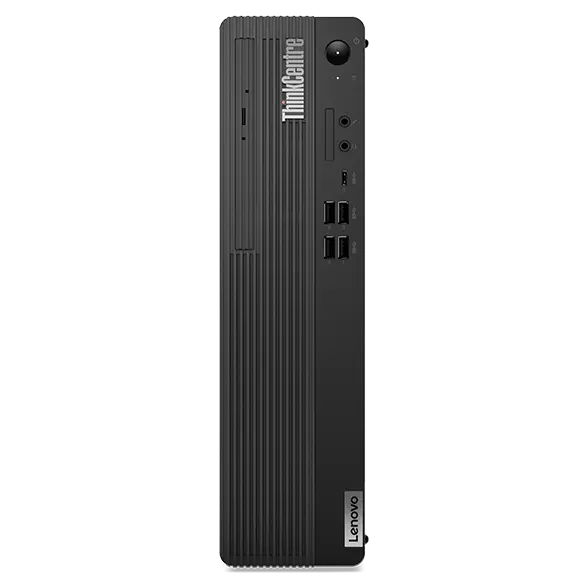

    1. Power button

    2. Optional: Slim ODD

    3. Optional: Card reader (3-in-1)

    4. USB-C® (USB 5Gbps)

    5. 4 X USB-A (USB 5Gbps)

    6. Mic

    7. Headphone / mic combo

    8. DisplayPort 1.4a

    9. HDMI® 2.1 (supports resolution up to 4K@60Hz)

    10. 4 X USB-A (hi-speed USB)

    11. Kensington Security Slot™

    12. Optional: 2 x PS/2 ports (keyboard / mouse)

    13. Ethernet (RJ45)

    14. Optional: Ports on expansion cards

    15. Power connector
