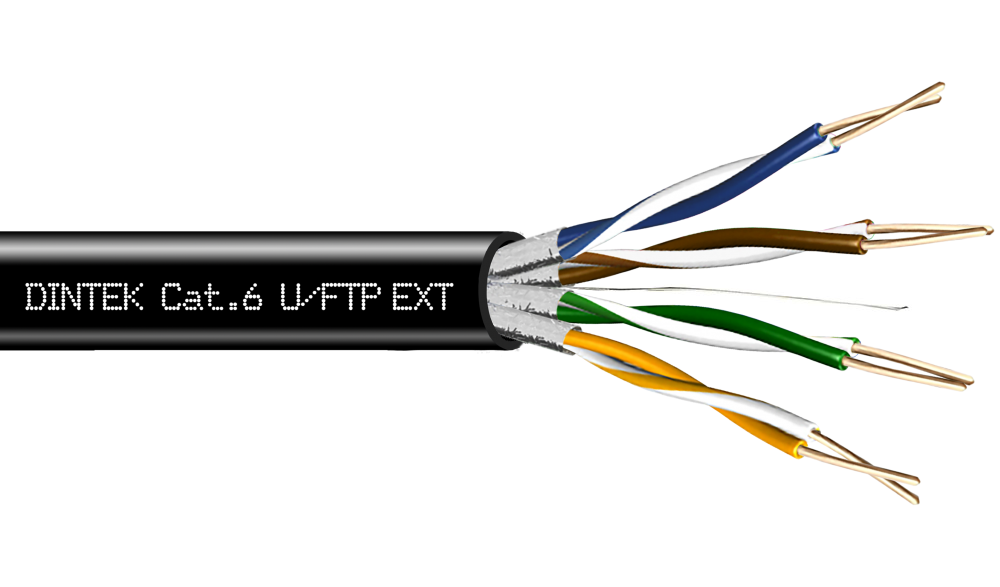

Dintek Cat.6 4Pair FTP Shielded (U/FTP) Outdoor Cable, 23AWG (PE Black) - 305M/reel

Construction
Conductor
Material: Pure Annealed Copper
Wire Size: 23AWG
Strand Type: Solid Core
No. Of Pairs: 4P

Insulation
Material: HDPE
Diameter: 1.35mm ± 0.1mm
Colors: Blue/White | Orange/White | Green/White | Brown/White
Pair Foil Wrap: Aluminum-mylar tape with tinned copper drain
Shielding: Drain wire (26AWG)

Jacket
Material: Polyethylene
Diameter: 6.50mm ± 0.5mm
Color: Black
CPR Reaction To Fire: Fca: according to EN 13501-6
Foil Shield: None
Braided Shield: None

Physical Ranges - Jacket
Min. Bending Radius: Without load 4 x Outer Diameter / Under load 8 x Outer Diameter
Max. Pulling Tension: 110N
Installation Temperature: 0°C to +50°C
Operating Temperature: -20°C to +60°C

Electrical
Conductor Resistance: Max. 9.38Ω/100m at 20°C
DC Resistance Unbalance: Max. 2% at 20°C
Pair-to-Ground Capacitance Unbalance: Max. 160 pF/m at 1 kHz
Dielectric Strength of Insulation: 1KV for 1min
Insulation Resistance Test (500V): Min. 5000 MΩ/Km at 20°C
Mutual Capacitance: Max. 5.6 nF/100m at 1 kHz
Impedance 1 ~ 100Mhz: 100Ω ± 15%
Impedance 100 ~ 250 ΩMhz: 100Ω ± 22%
