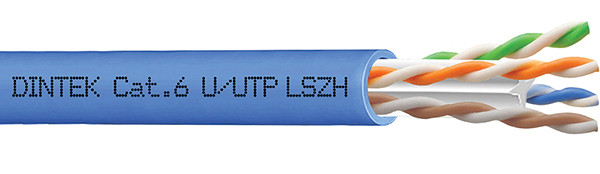

Dintek PowerMAX500 4P Cat.6 U/UTP 23AWG LSZH Dca Cable - Blue

Conductor
Material: Pure Annealed Copper
Wire Size: 23AWG
Strand Type: Solid Core
No. Of Pairs: 4P
Insulation: Material: Polyethylene
Thickness: 0.21mm ± 0.01mm
Diameter: 0.98mm ± 0.05mm
Colors: Blue/White | Orange/White | Green/White | Brown/White
Pair Foil Wrap: None


Jacket
Material: LSZH
Thickness: 0.425 mm ± 0.025mm
Diameter: 5.70mm ± 0.3mm
Color: Blue
CPR Reaction To Fire Classification: Dca,s2,d2,a1
Foil Shield: None
Braided Shield: None

Physical Ranges
Jacket
Cold Bend Test: -20 ± 2°C x 4hrs no crack
Min. Bending Radius: Min. 4 x Cable Diameter
Max. Pulling Tension: 110N
Installation Temperature: 0℃ to +50℃
Operating Temperature: -20℃ to +60℃

Electrical
Conductor Resistance: Max. 9.38 Ω/100m at 20°C
DC Resistance Unbalance: Max. 2% at 20°C
Pair-to-Ground Capacitance Unbalance: Max. 1600 pF/km at 1 kHz
Dielectric Strength of Insulation: DC 1.0 KV for 1 min
Insulation Resistance Test (500V): Min. 5000 MΩ/Km at 20°C
Mutual Capacitance: Max. 5600 pF/100m at 1 kHz
Impedance 1 ~ 250Mhz: 100Ω ± 5%
Nominal Velocity Of Propagation: 67%
