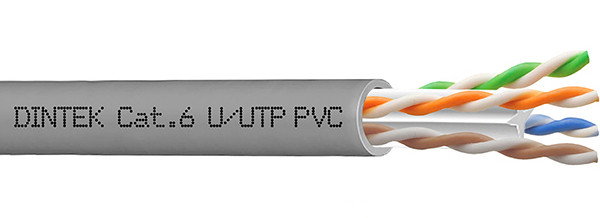

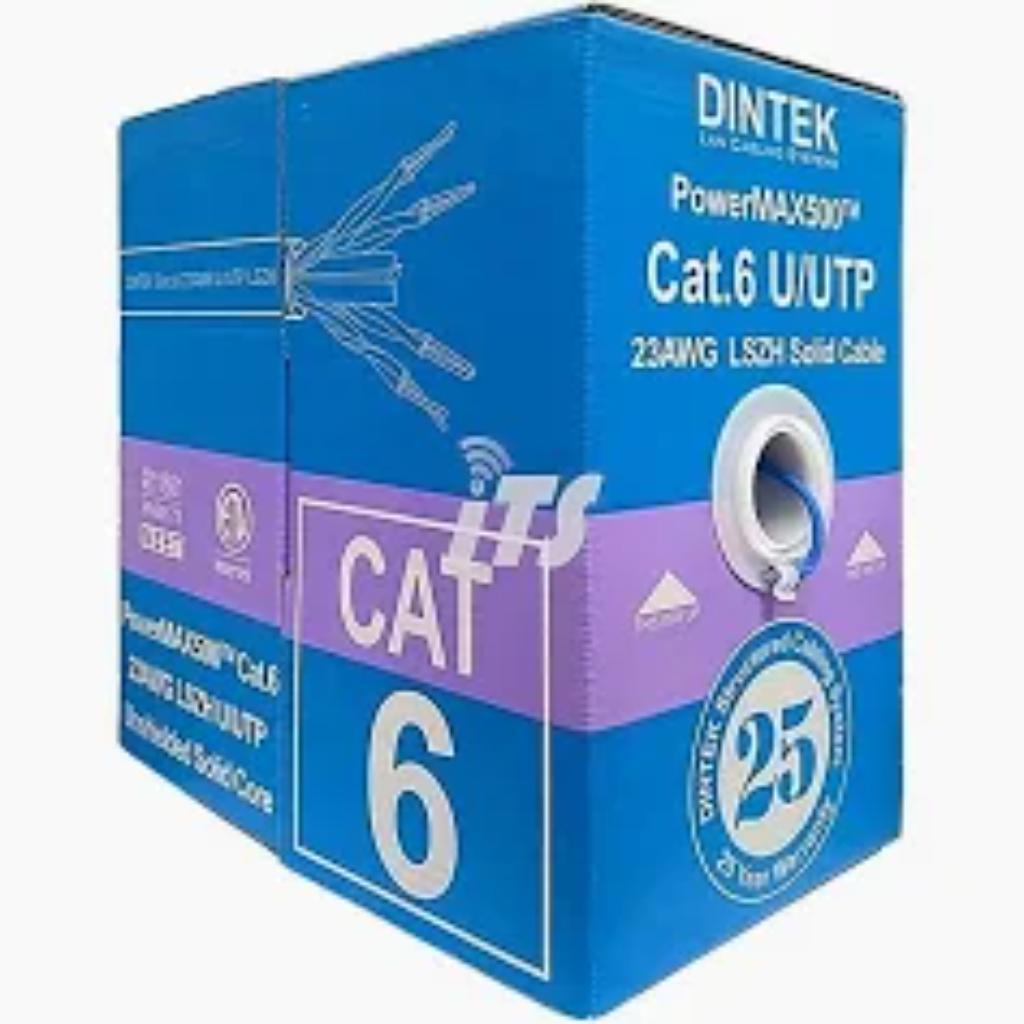

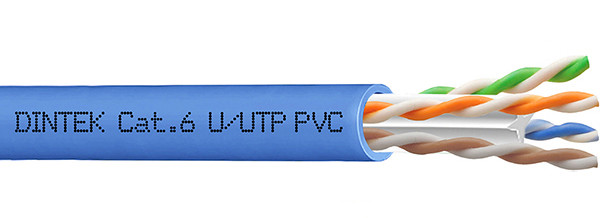

Dintek Cat.6 4P UTP Solid Cable, 23AWG PVC 305M/box - Gray / Blue

Conductor
Material: Pure Annealed Copper
Wire Size: 23AWG
Strand Type: Solid Core
No. Of Pairs: 4P

Insulation
Material: Polyethylene
Thickness: 0.21mm ± 0.01mm
Diameter: 0.98mm ± 0.05mm
Colors: Blue/White | Orange/White | Green/White | Brown/White
Pair Foil Wrap: None

Jacket
Material: PVC
Thickness: 0.5 mm ± 0.05mm
Diameter: 5.70mm ± 0.3mm
Color: Gray
Jacket Rating: CM
Foil Shield: None
Braided Shield: None

Physical Ranges - Jacket
Cold Bend Test: -20 ± 2°C x 4hrs no crack
Min. Bending Radius: Min. 4 x Cable Diameter
Max. Pulling Tension: 110N
Installation Temperature: 0°C to +50°C
Operating Temperature: -20°C to +60°C

Electrical
Conductor Resistance: Max. 9.38 Ω/100m at 20℃
DC Resistance Unbalance: Max. 2% at 20°C
Pair-to-Ground Capacitance Unbalance: Max. 1600 pF/km at 1 kHz
Dielectric Strength of Insulation: DC 1 kV for 1 min
Insulation Resistance Test (500V): Min. 5000 MΩ/Km at 20°C
Mutual Capacitance: Max. 5600 pF/100m at 1 kHz
Impedance 1~250MHz: 100Ω ± 15%
Nominal Velocity Of Propagation: 67%
